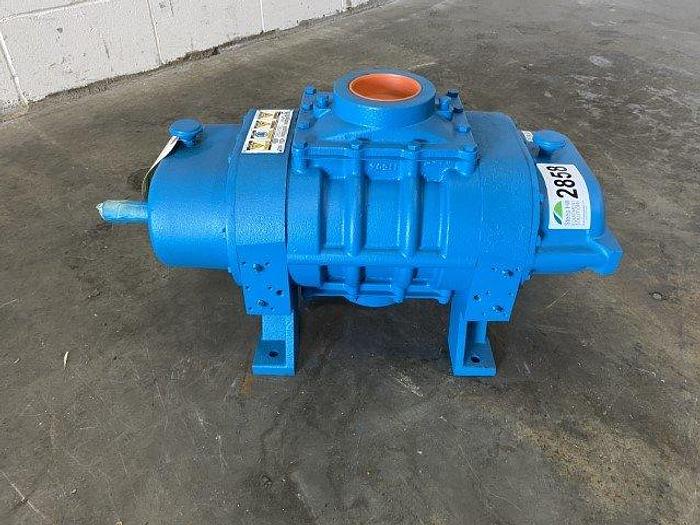

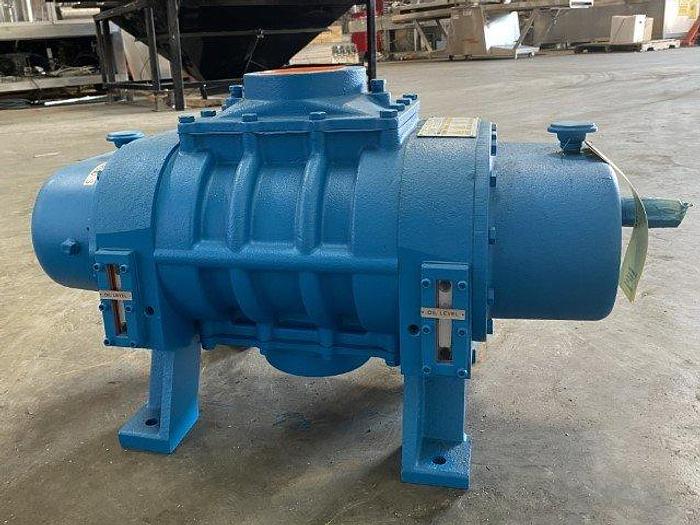

Tuthill PD Plus® 4009-46R2 Rotary Lobe Blower
Sold
Tuthill PD Plus® 4009-46R2 Rotary Lobe Blower
Description
A vertical-flow positive displacement blower that has a CW or CCW right drive rotation, which makes either side the intake or discharge.
Intake and discharge ports: 3″ diameter
Rotors: 2-lobe
MAWP: 18 psi
Max RPM: 4,000
Max dry vacuum: 17 Hg/575 mbar
Max temperature rise: 360°F/200°C
Oil-level sight gauge
Manual available
Specifications

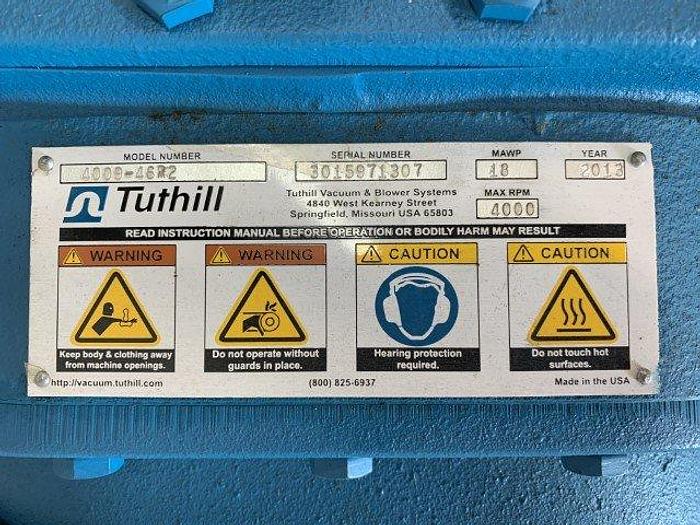

| Manufacturer | Tuthill |
| Model | 4009-46R2 |
| Year | 2013 |
| Condition | New |
| Serial Number | 3015971307 |
| Stock Number | 2858 | E7281 |
| Dimensions (l x w x h) | 26" x 13" x 15" |
| Includes manual | Yes |
| Length (in) | 26 |
| Width (in) | 13 |
| Height (in) | 15 |
