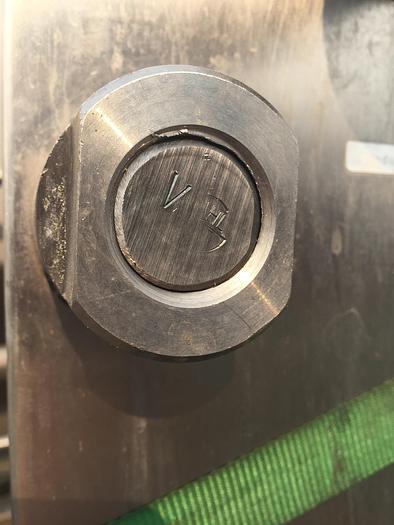

Plate Heat Exchanger
Plate Heat Exchanger
Description
The plate heat exchanger consists of a pack of corrugated metal plates with portholes for the passage of the two fluids between which heat transfer will take place.
Frame: mild steel
Pipe & plates: stainless steel – titanium
Gaskets (Glue): NBR – EPDM – VITON
Nozzle: carbon steel
The number of plates is determined by the flow rate, physical properties of the fluids, pressure drop and temperature program.

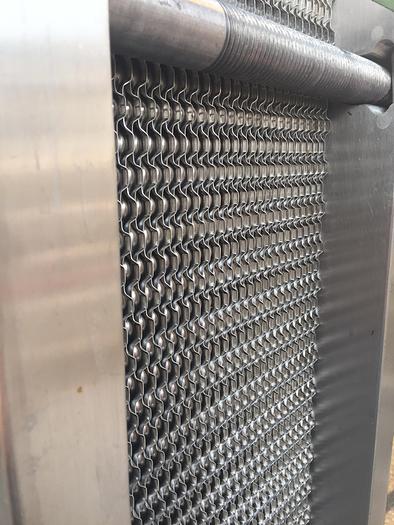

Plates currently on the heat exchanger: 55
Technical Data:
Maximum heat transfer surface: 52 m²
Design temperature: 180° C
Design pressure: 1.6 MPa
Connection type: flange

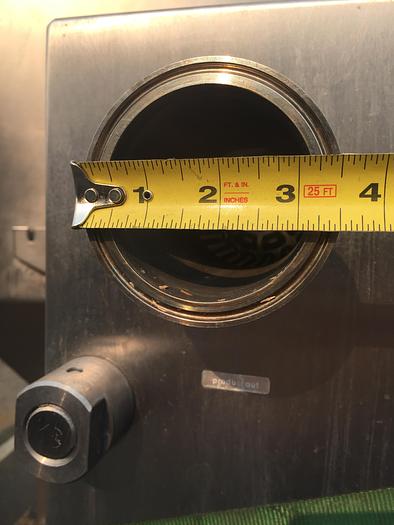

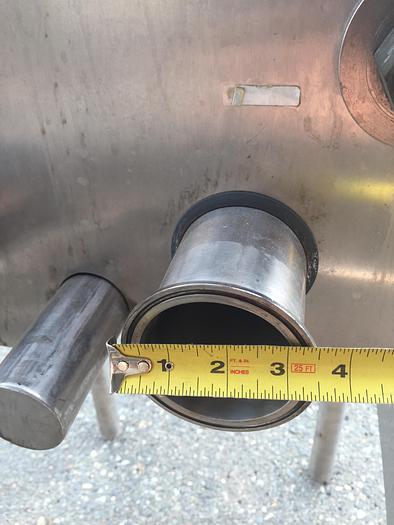

Connection size: 3″
Specifications

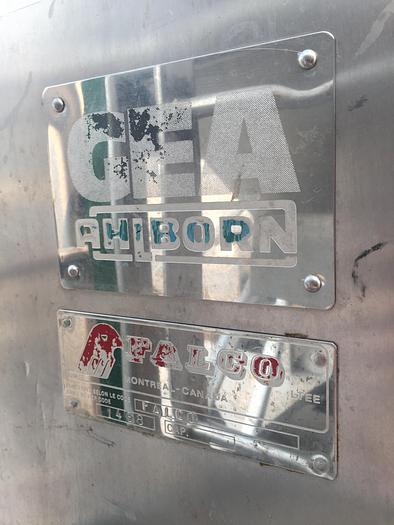

| Manufacturer | GEA |
| Model | VT20 |
| Year | 1985 |
| Condition | Used |

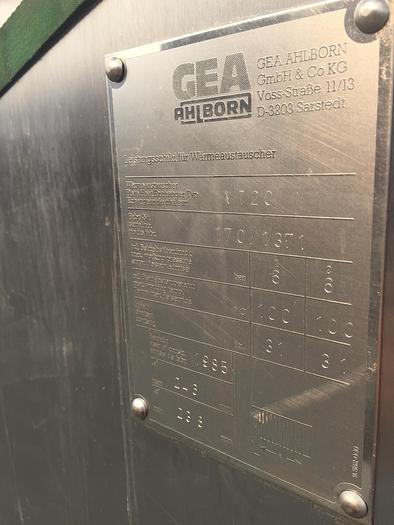

| Serial Number | 170/1371 |

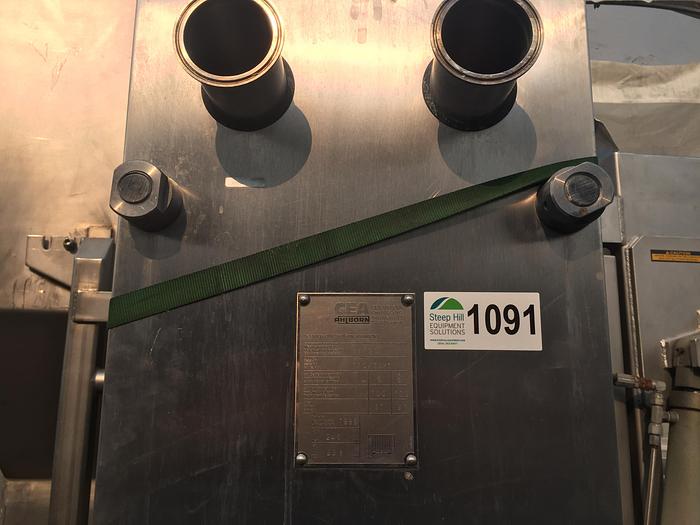

| Stock Number | 1091 |
| Dimensions (l x w x h) | 22" x 20" x 70" |
| Weight | 226kg |
| Location code | BB6 |
| Weight (kg) | 226 |
| Length (in) | 22 |
| Width (in) | 20 |
| Height (in) | 70 |
