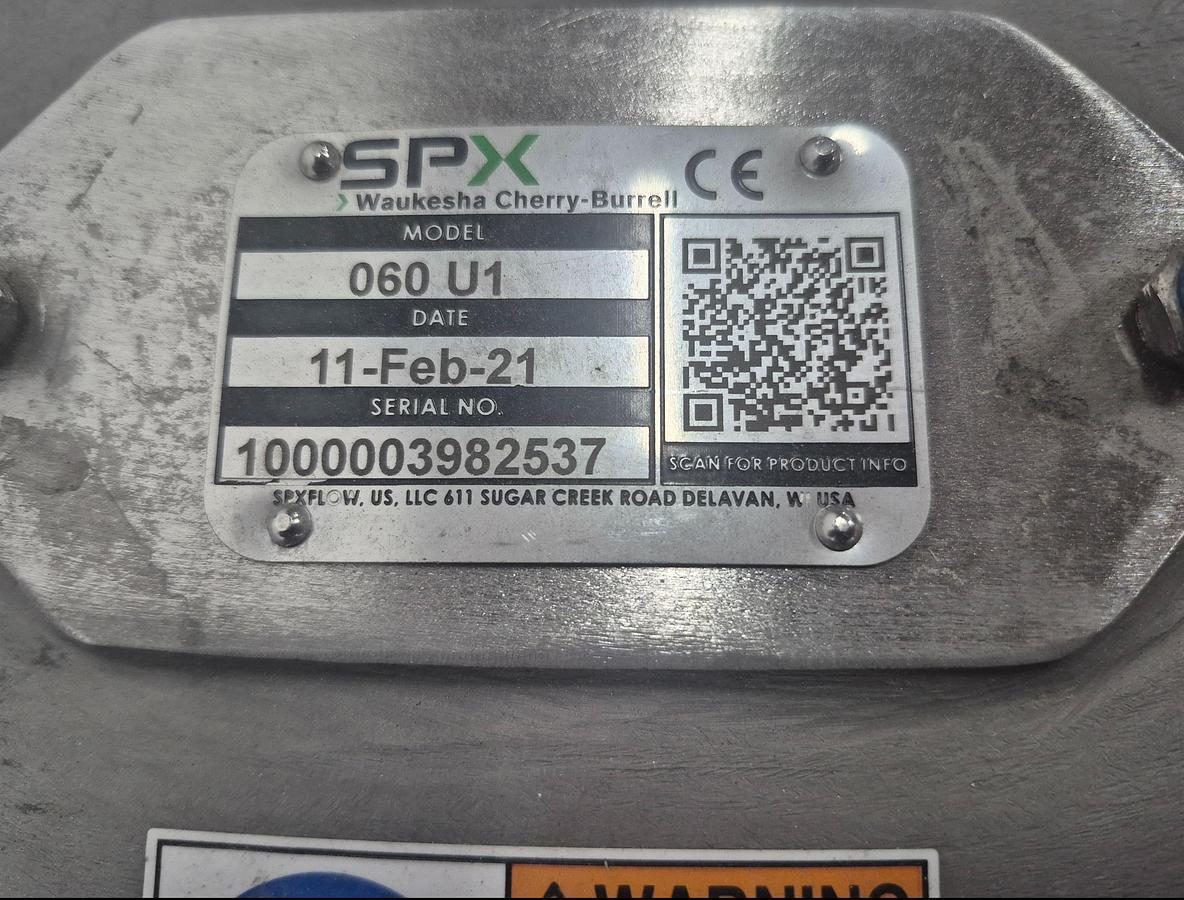

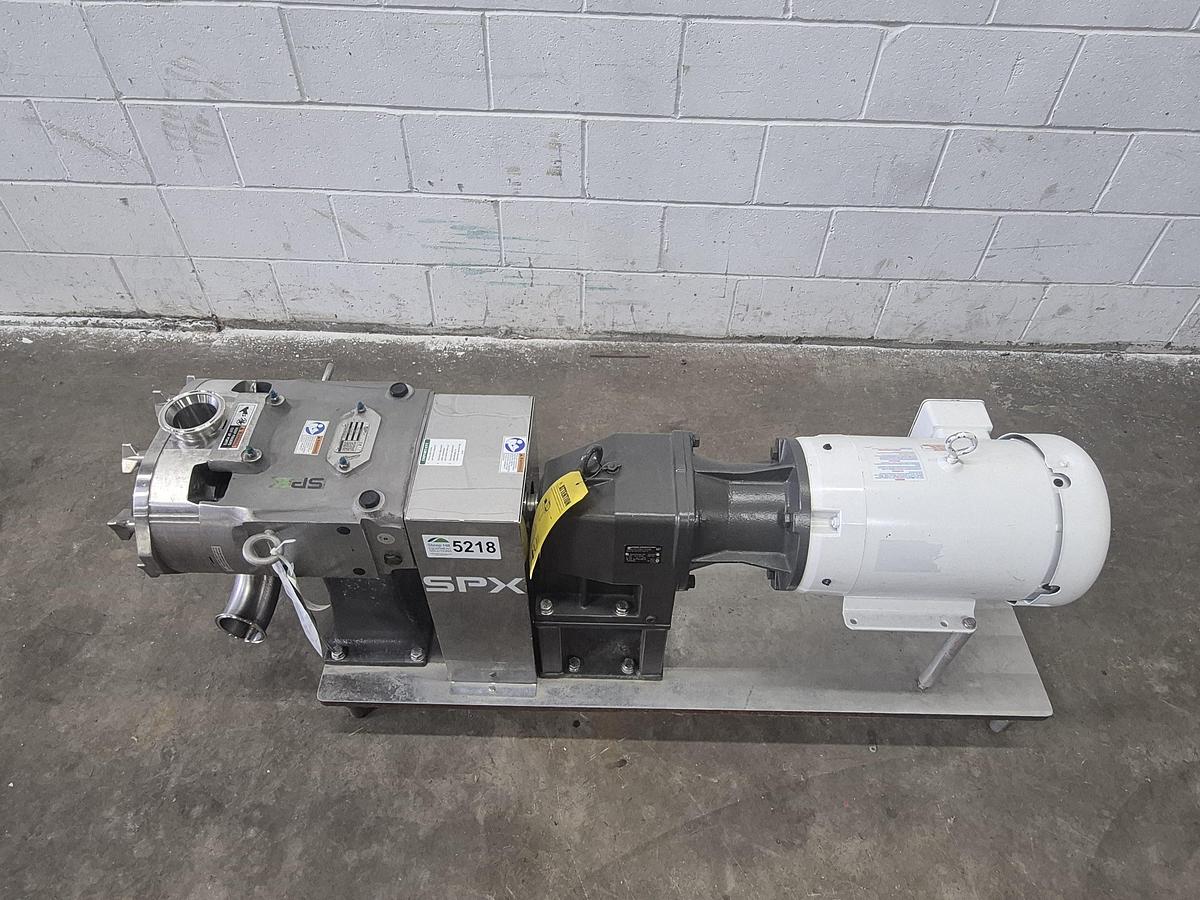

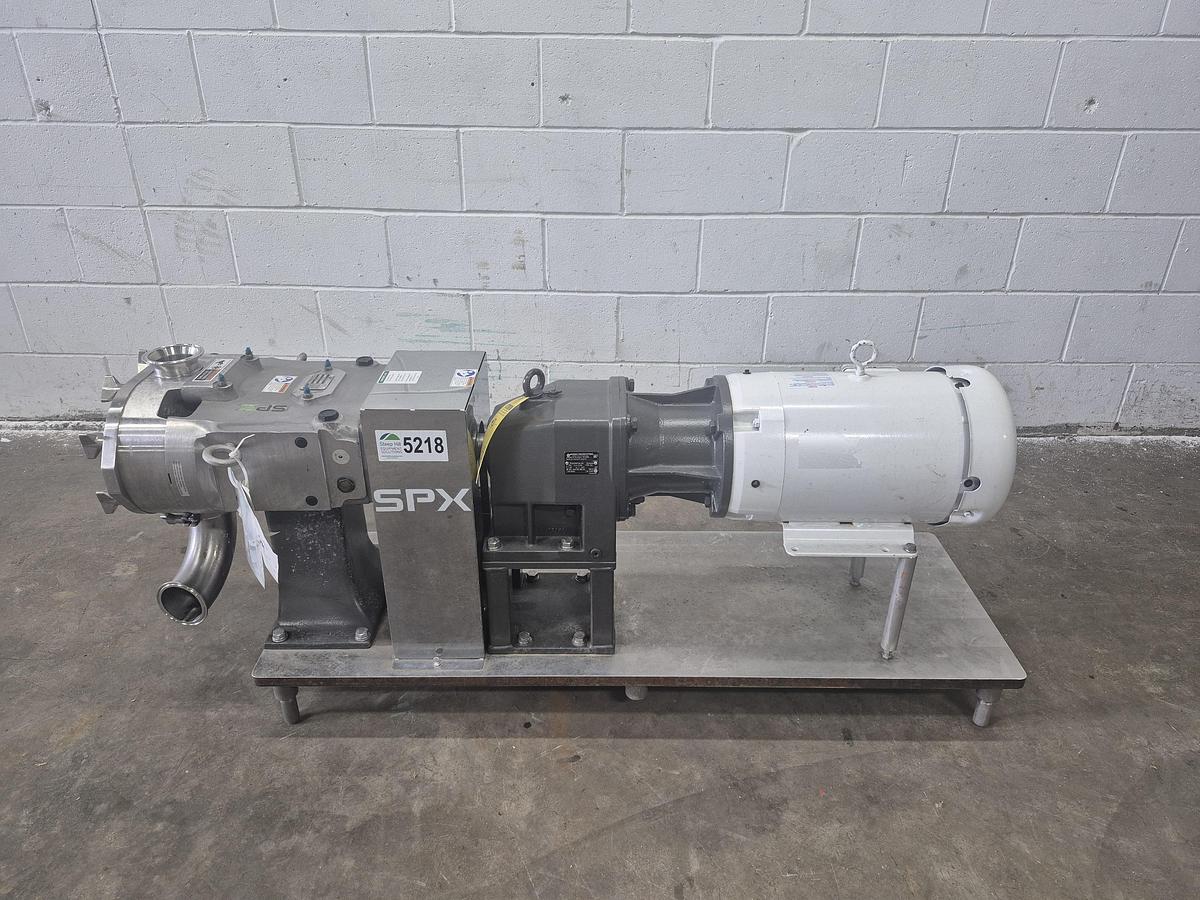

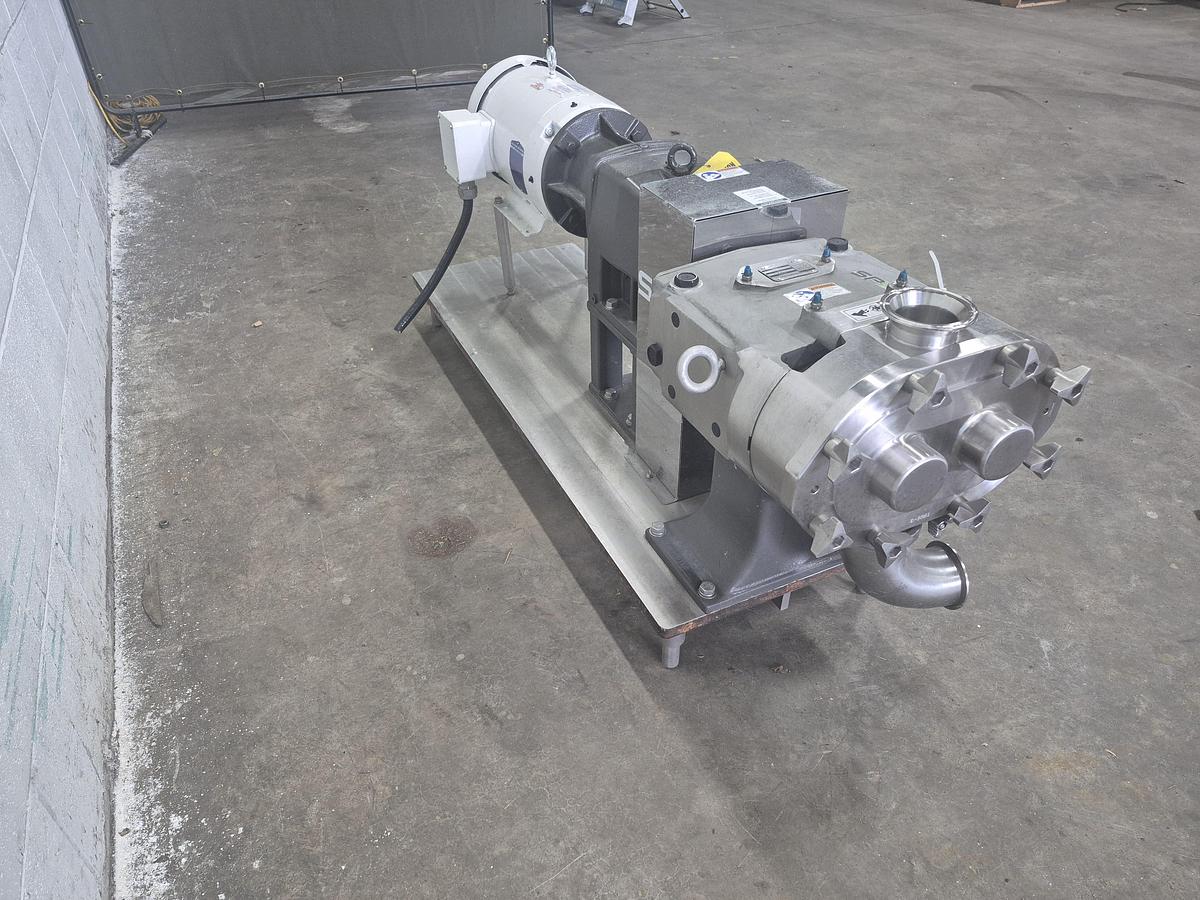

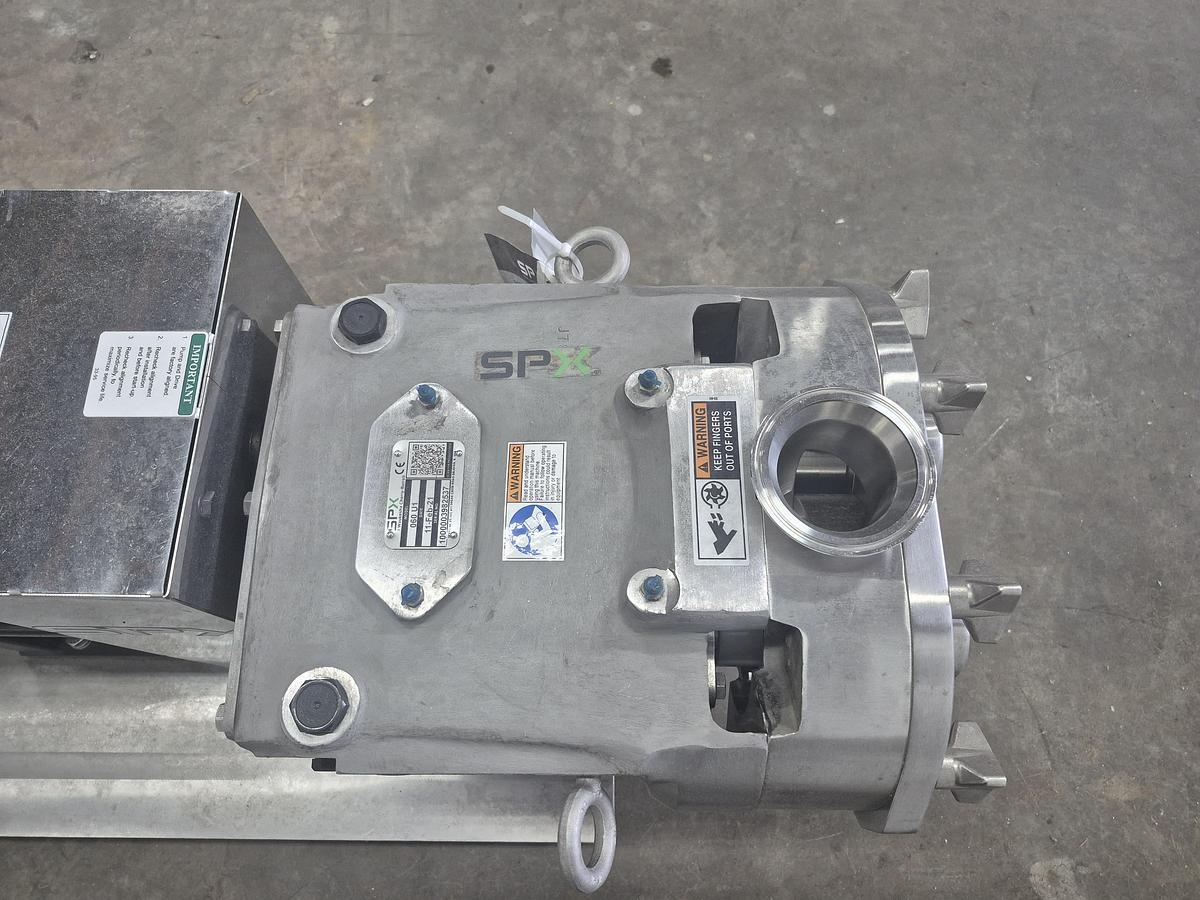

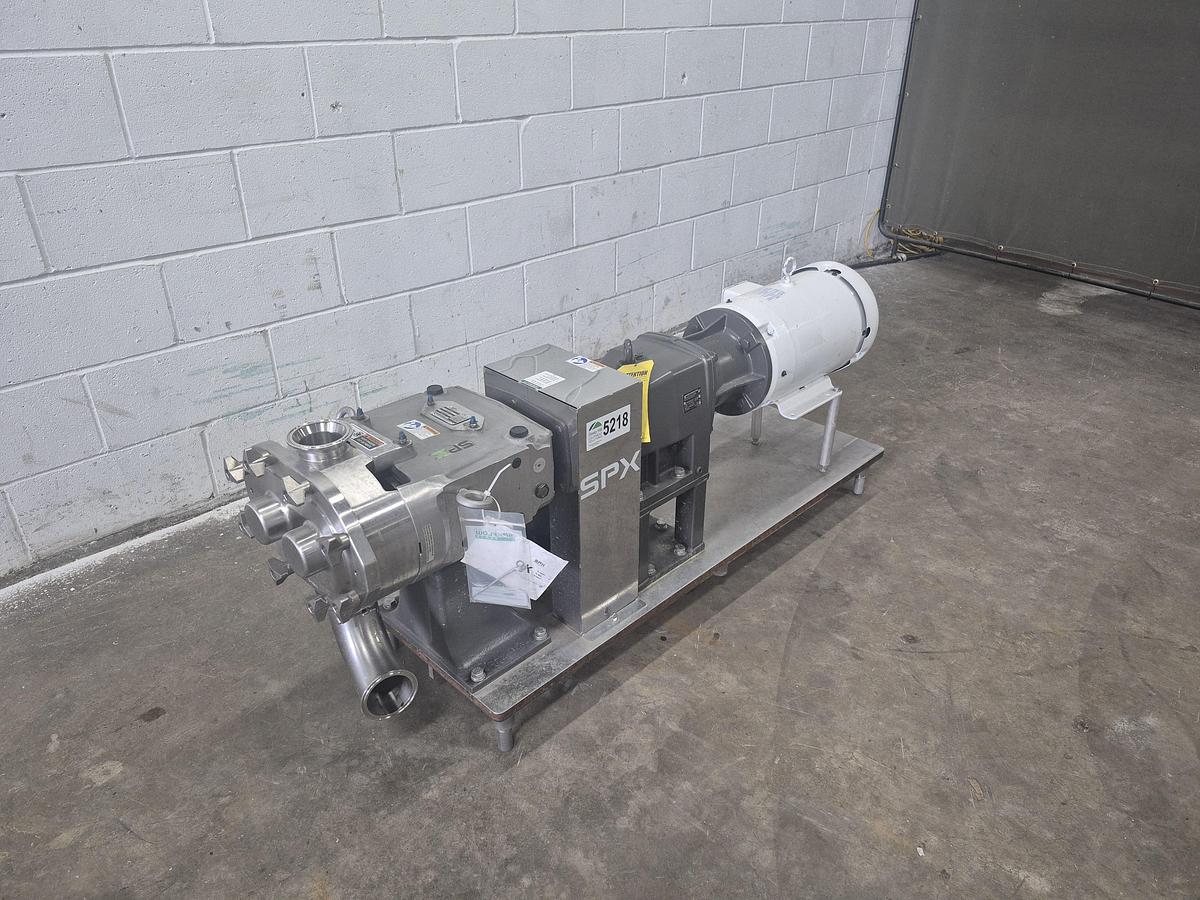

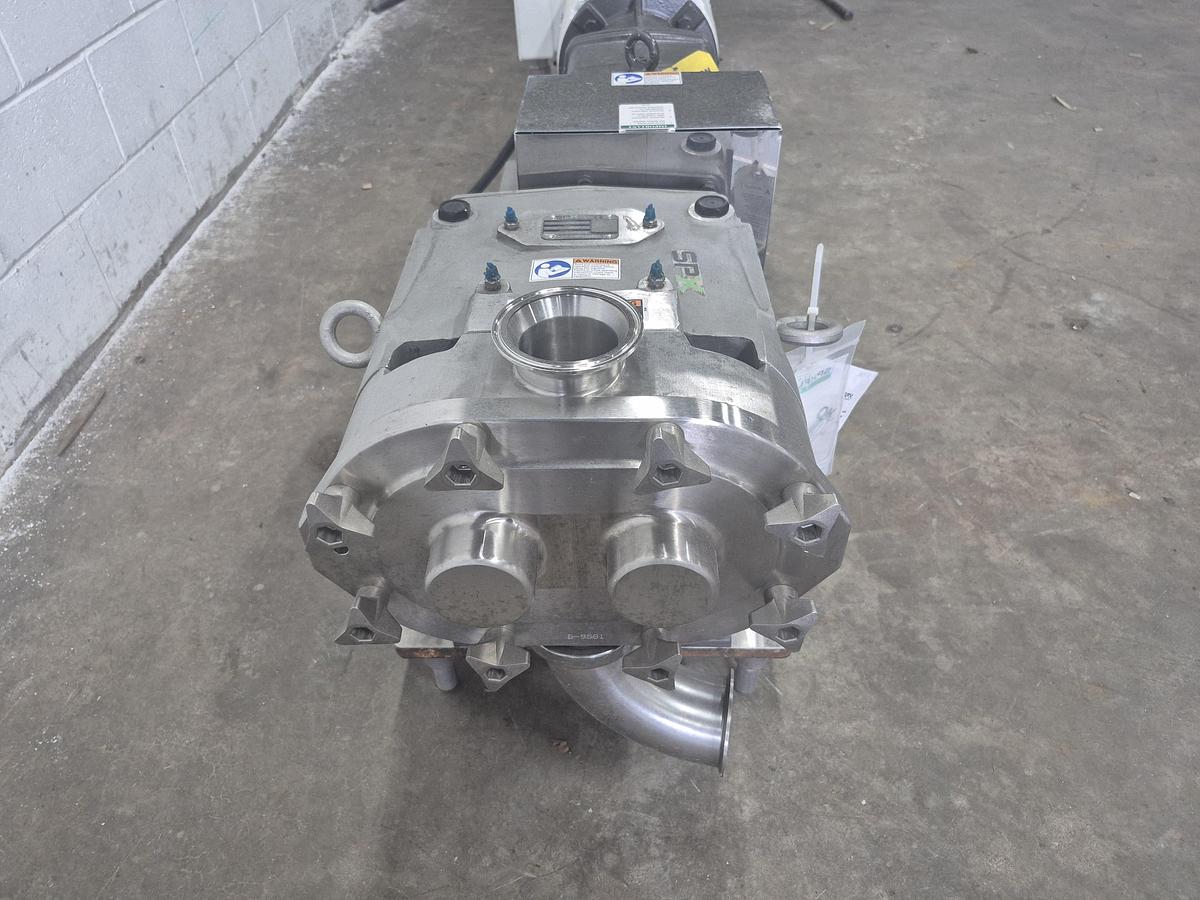

SPX Waukesha External Circumferential Piston Pump

SPX Waukesha External Circumferential Piston Pump

is a versatile "workhorse" pump primarily used for transferring delicate, thick, or particulate-heavy fluids in sanitary industries. Because it uses a gentle, low-shear pumping action, it moves products without damaging their texture or integrity, making it ideal for everything from chunky soups to cosmetic creams.

Specs:

• Nominal Capacity: Up to 90 GPM
• Maximum Pressure: 200 PSI (13.8 bar)
• Displacement: 0.153 gallons (0.579 liters) per revolution
• Operating Speed: Up to 600 RPM
• Temperature Range: -40 Degrees Fahrenheit (-40 Degrees Celsius) to 300 Degrees Fahrenheit (149 Degrees Celsius)
• Inlet/Outlet Diameter: 2.5 inches

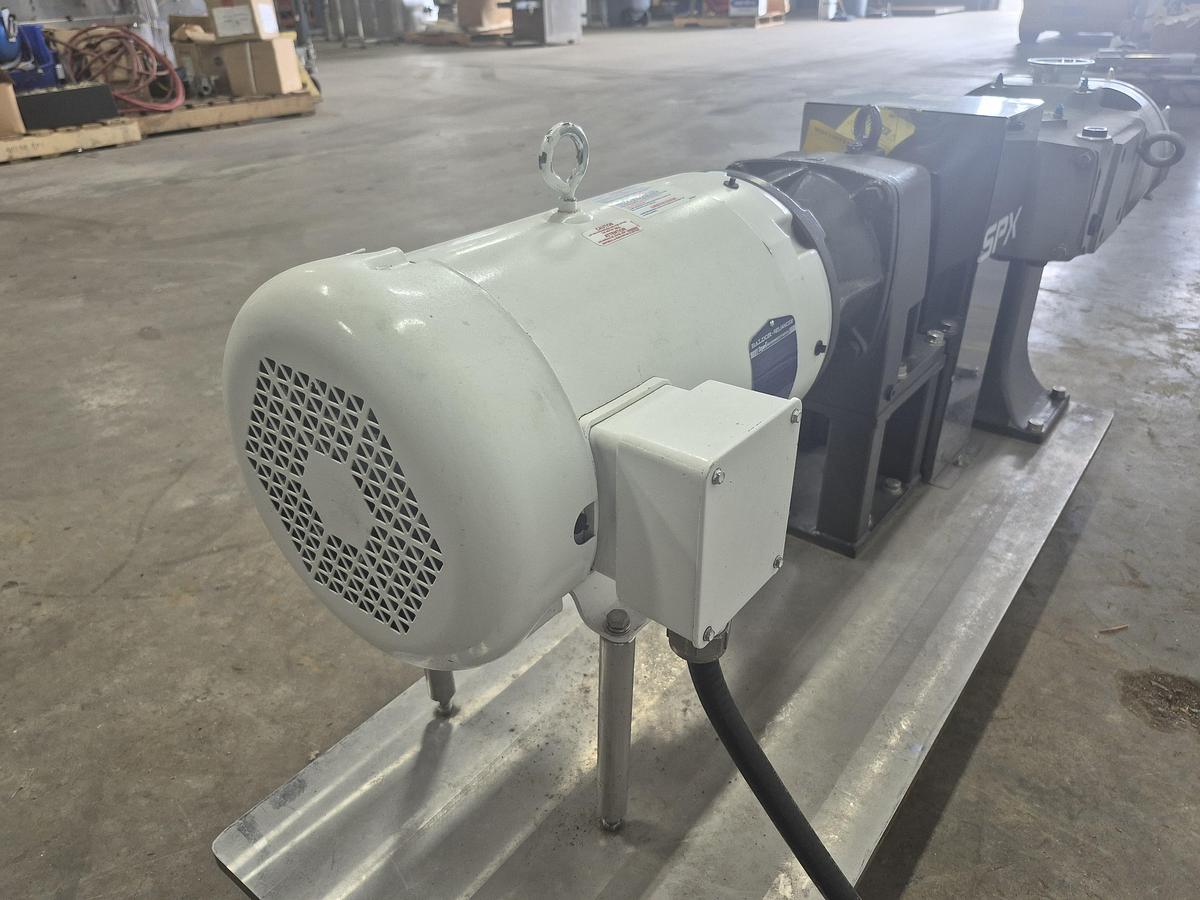

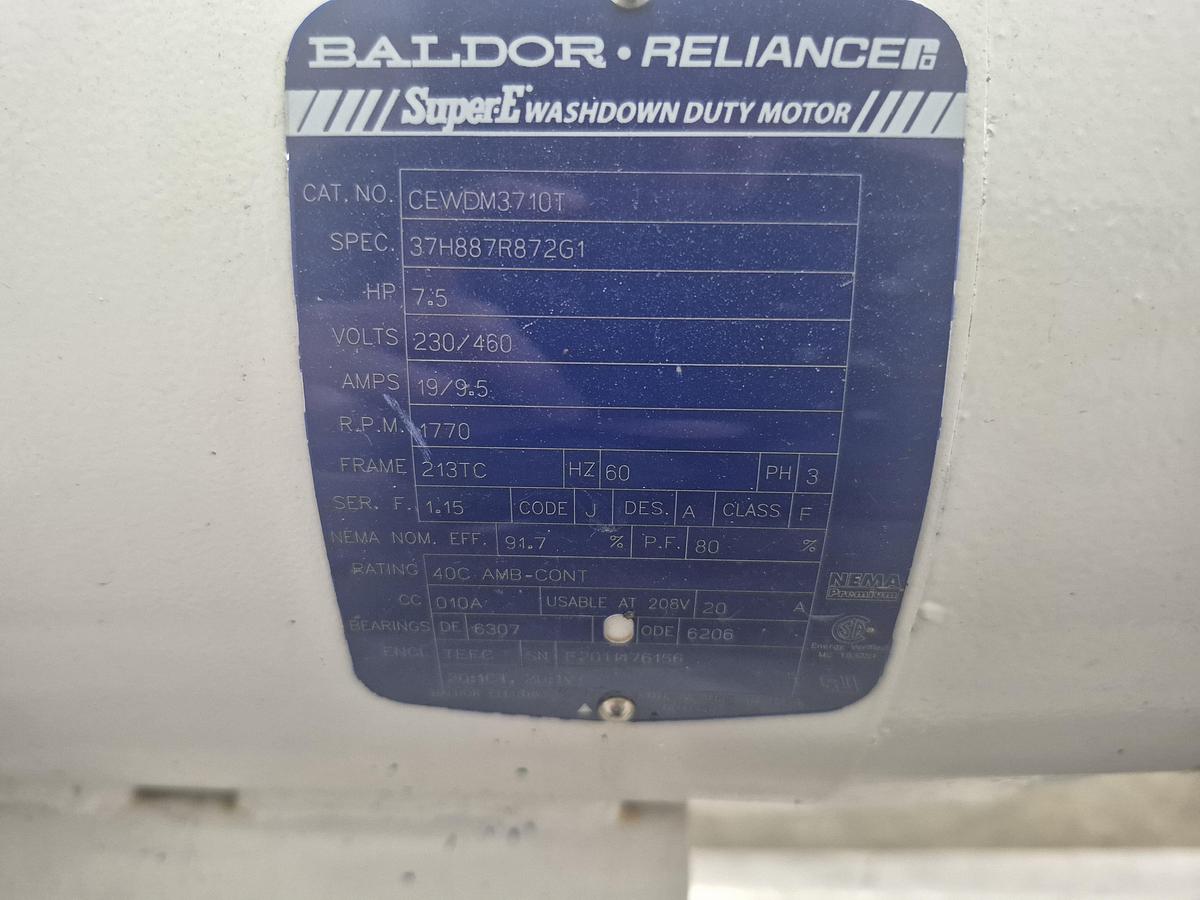

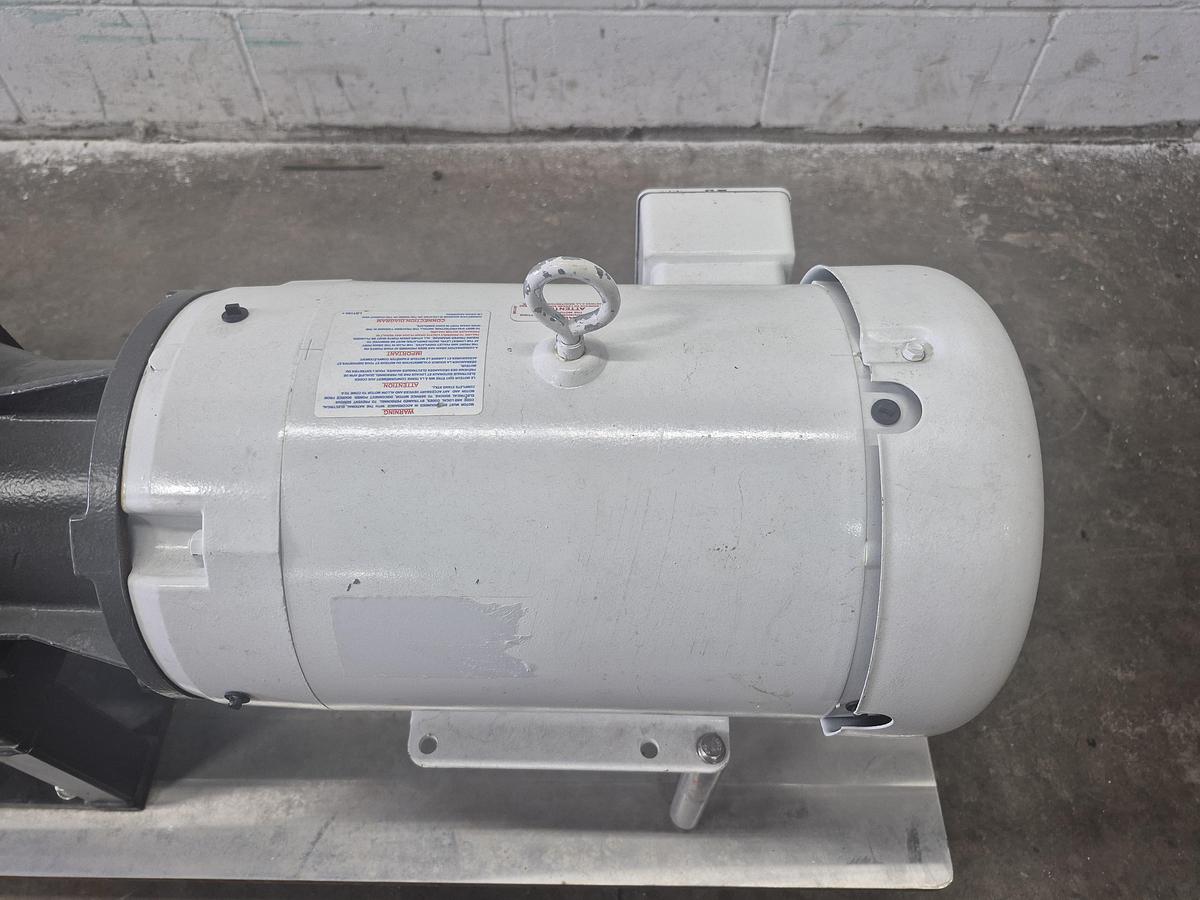

Powered by a Baldor-Reliance CEWDM3710T 7.5 HP Motor

• Power Output: 7.5 HP (5.5 kW)
• Speed: 1770 RPM (Base) / 1800 RPM (Synchronous)
• Voltage: 230/460V (3-Phase)

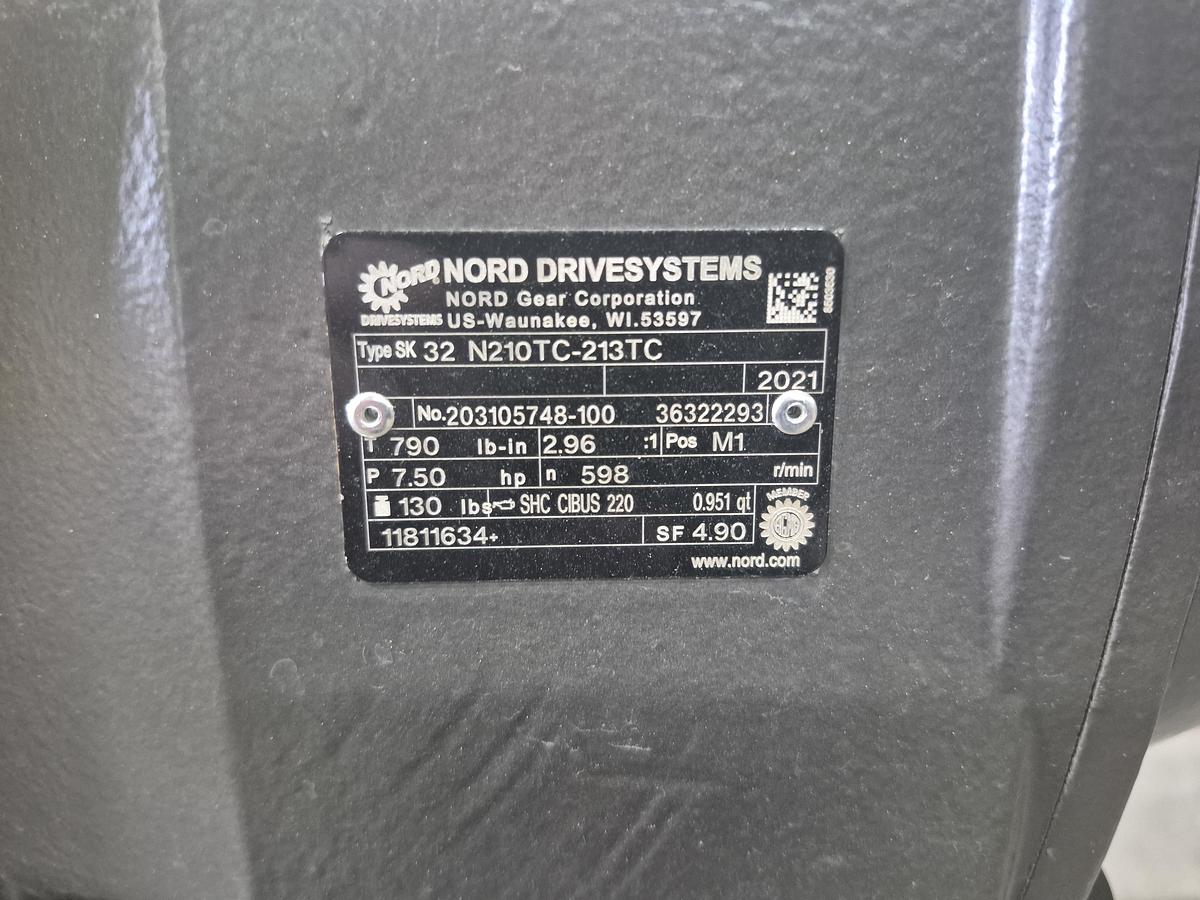

Nord SK 32 N210TC-213TC Helical In-Line Gear Unit

• Torque: 790 lb-in
• Gear Ratio: 2.96:1
• Output Speed: 598 r/min
• Input Power Rating: 7.50 hp
