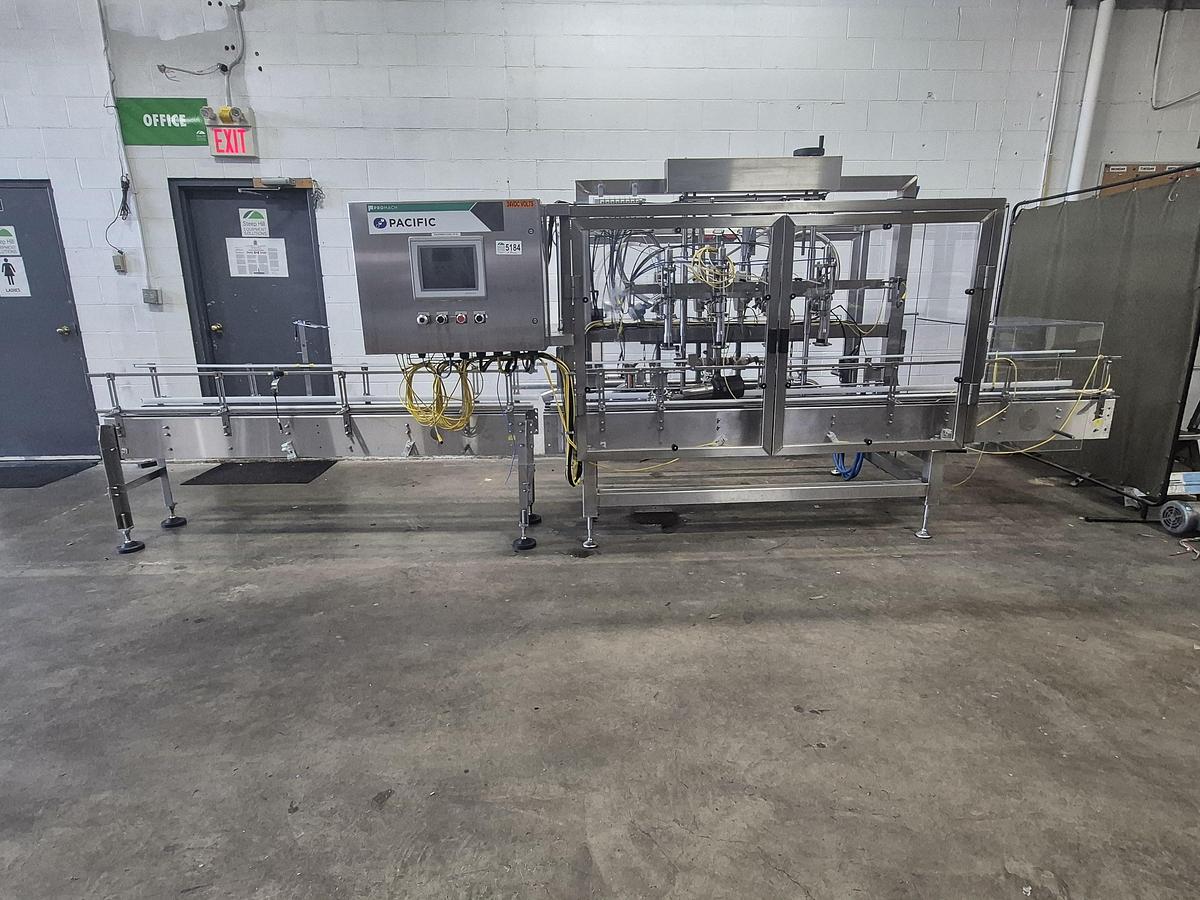

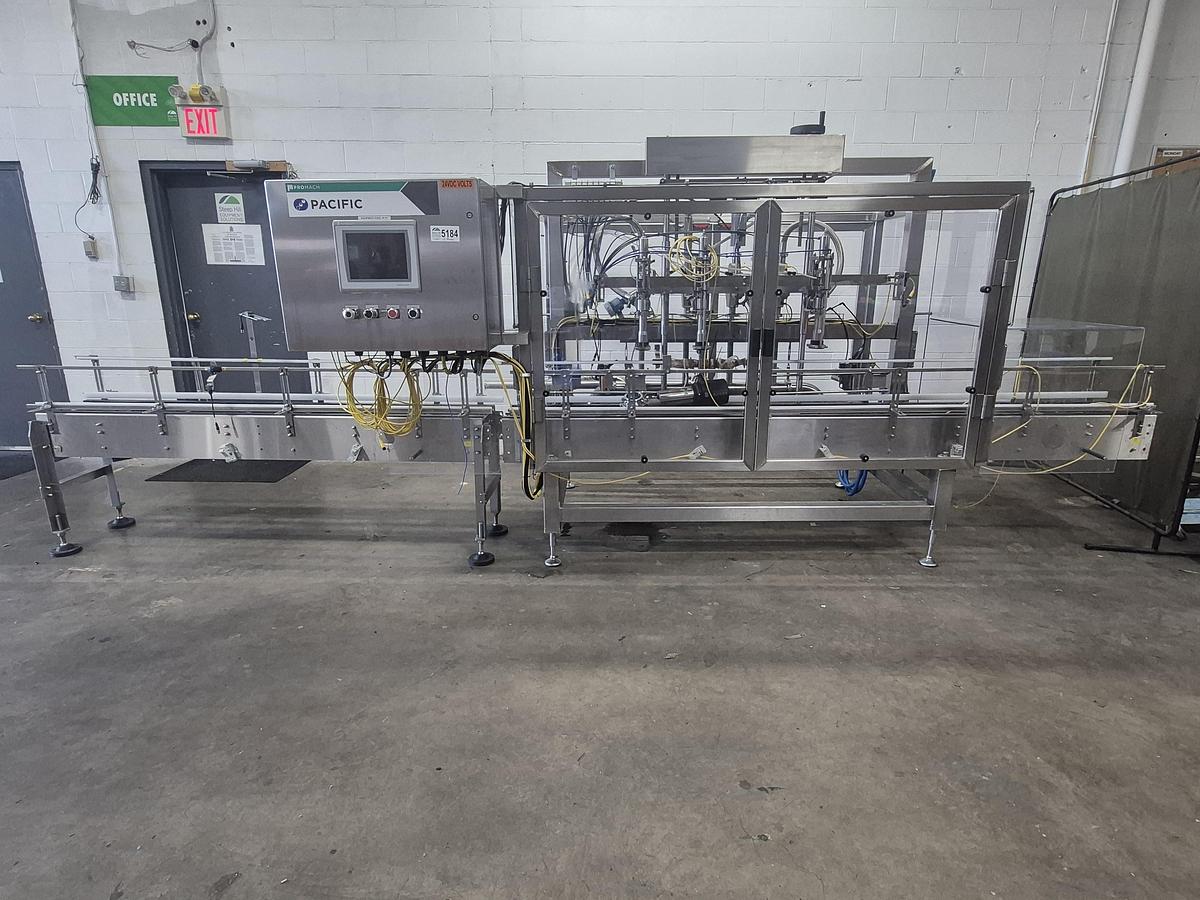

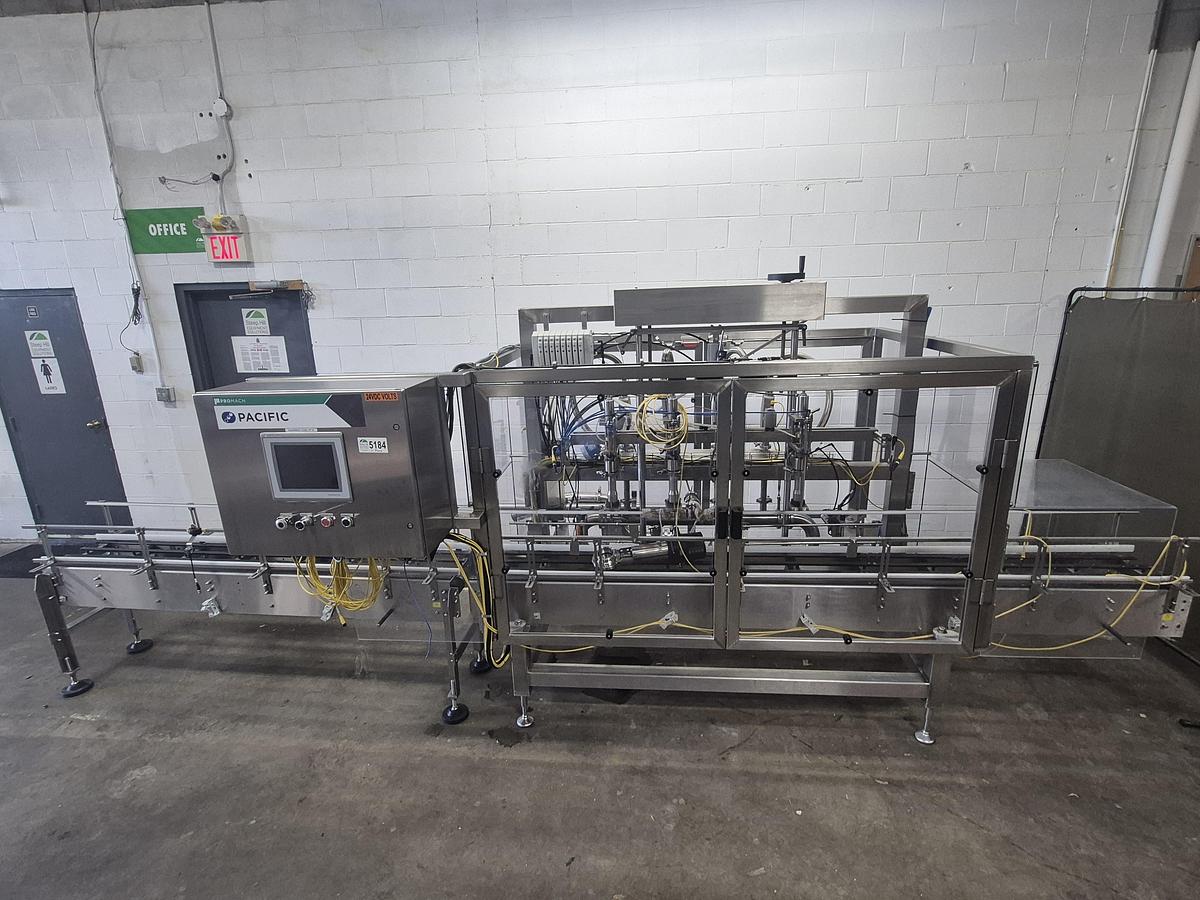

Pacific Inline Flow Meter Liquid Filling Machine

Pacific Inline Flow Meter Liquid Filling Machine

Provides inline flow meter liquid filling machines designed for precise, high-speed dispensing of free-flowing to semi-viscous products. These systems use advanced flow measurement technology to ensure highly accurate fill volumes across various industries, including food and beverage, personal care, and automotive.

Specs:

• Production Speed: Offers steady-state speeds ranging from 1 to 80 containers per minute (cpm), depending on the model and container size
• Container Range: Accommodates a wide variety of sizes, typically from 2 oz (59 mL) to 1 gallon (3.78 L), with specialized configurations for larger 5-gallon pails and Jug-in-Box (JIB) applications

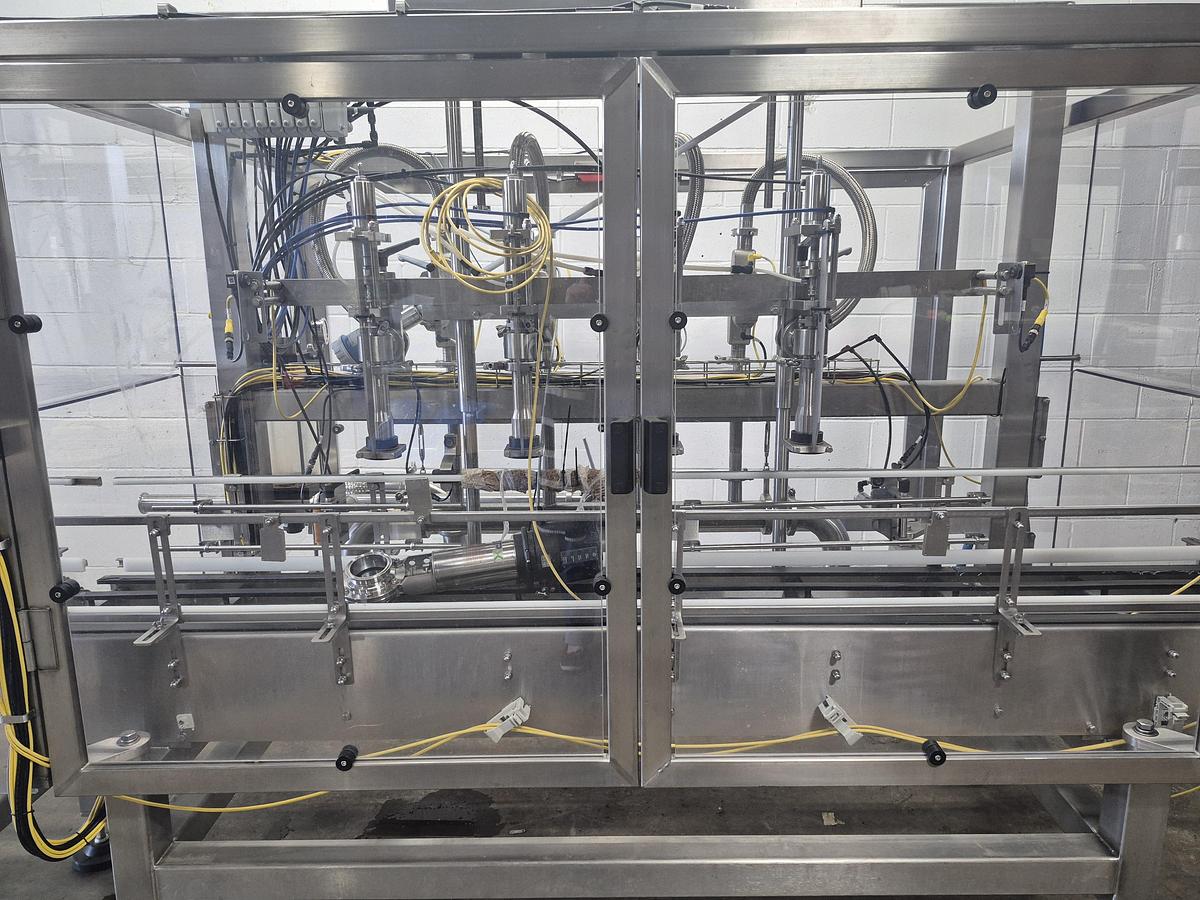

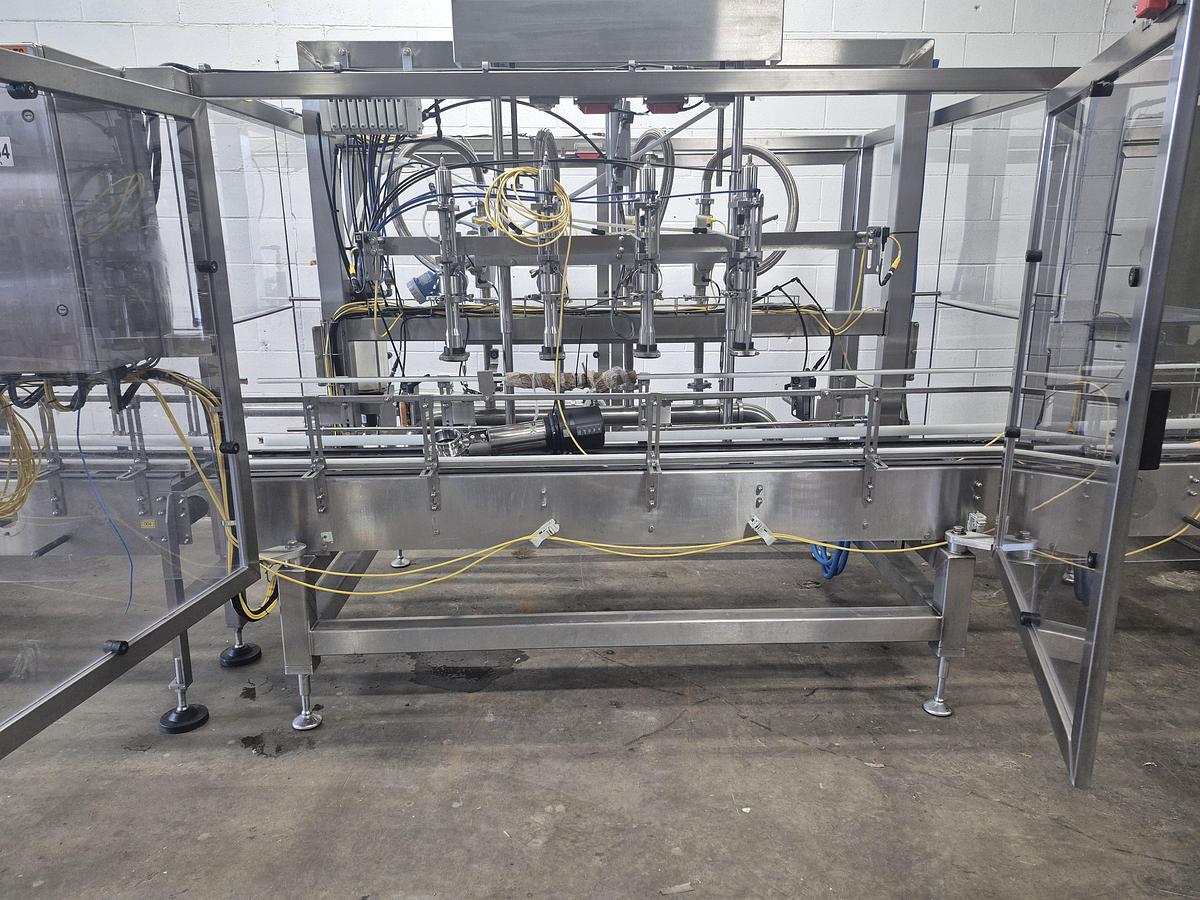

• Station Configuration: Can be configured with up to 12 filling nozzles to meet specific production requirements

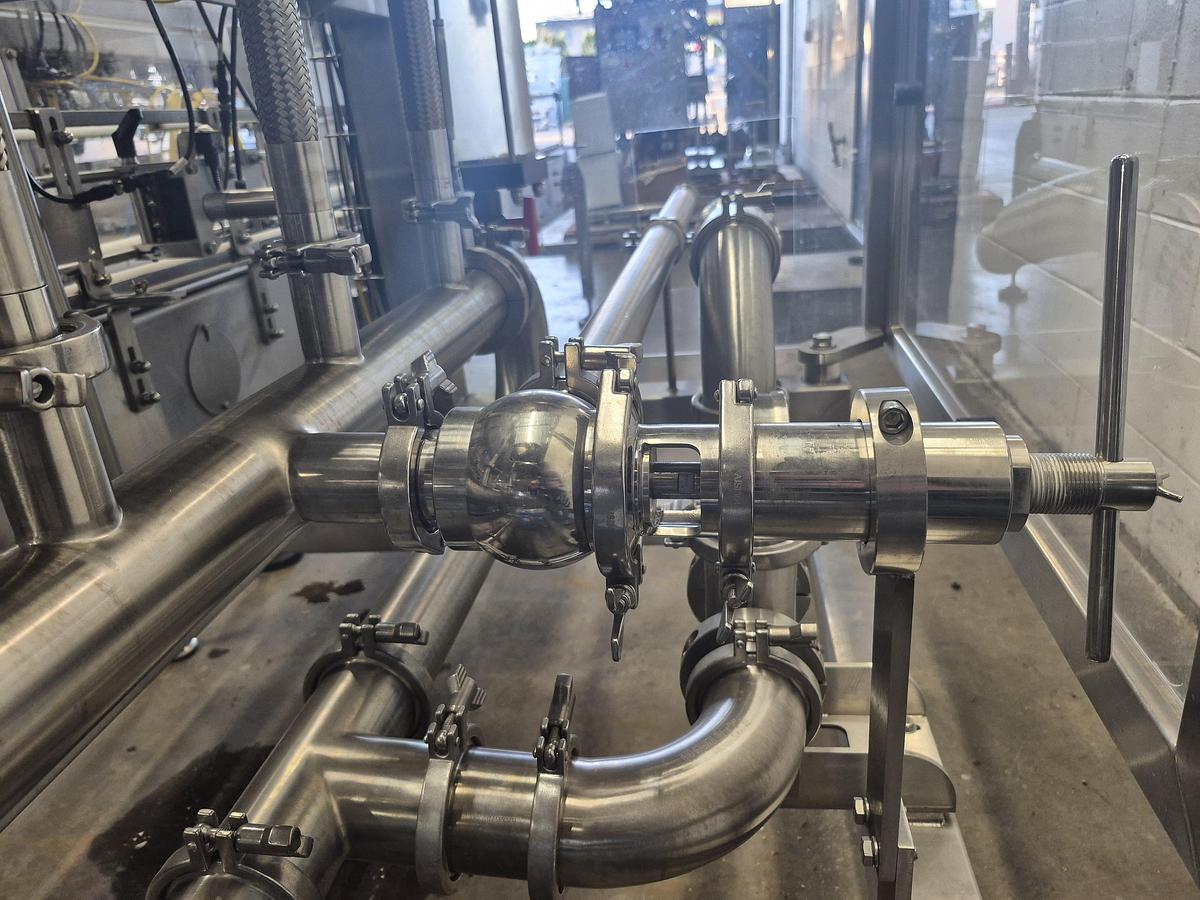

• Nozzle Designs: : Features over 100 filling valve designs, supporting multiple configurations such as bottom-up, true top fill, below-the-neck, and diving nozzles

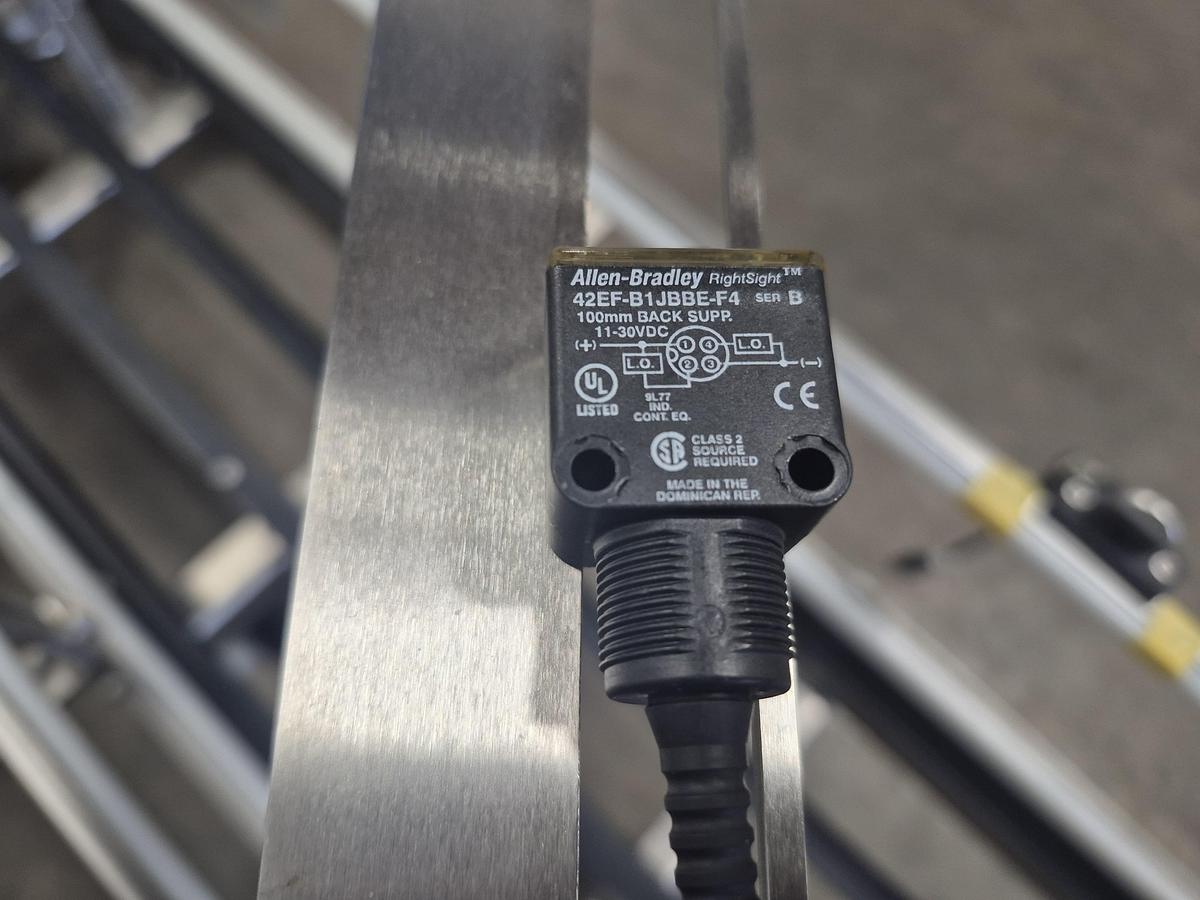

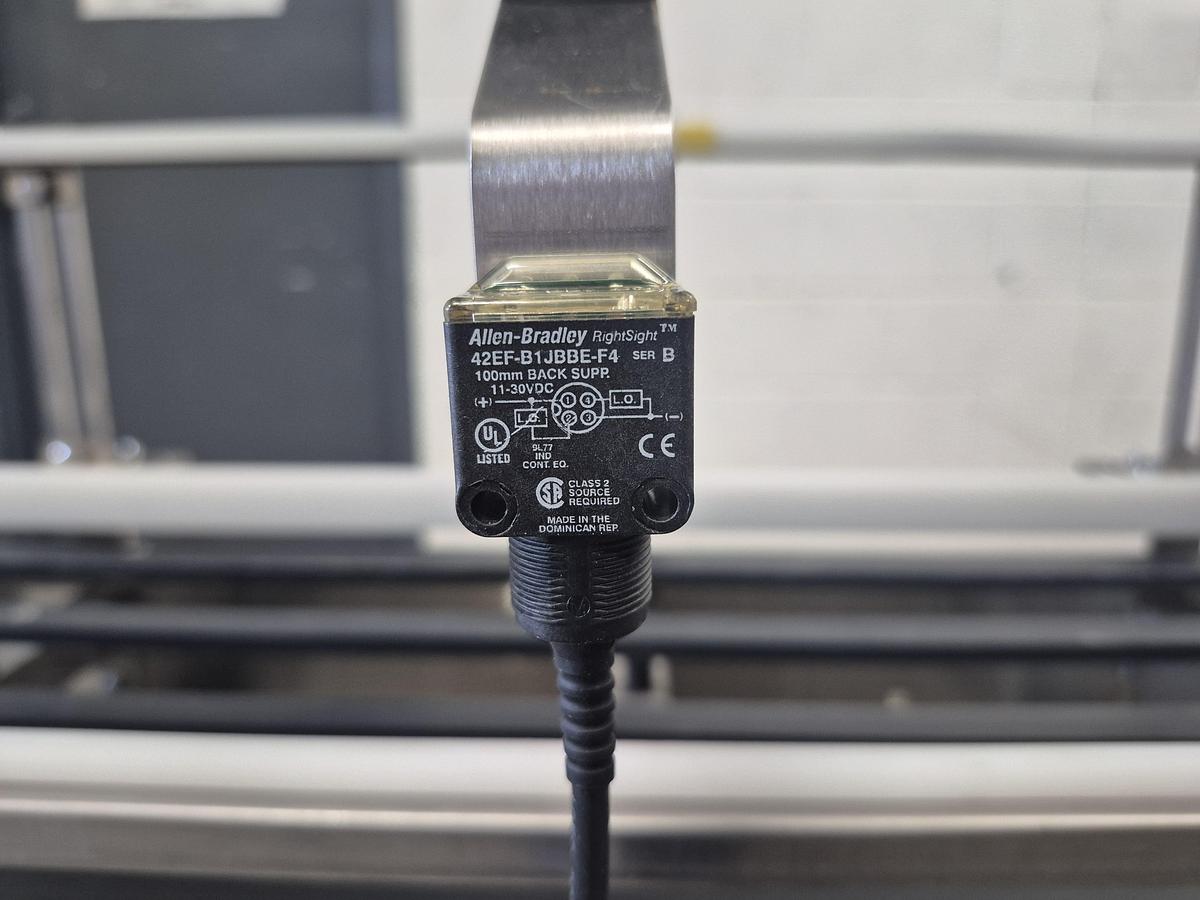

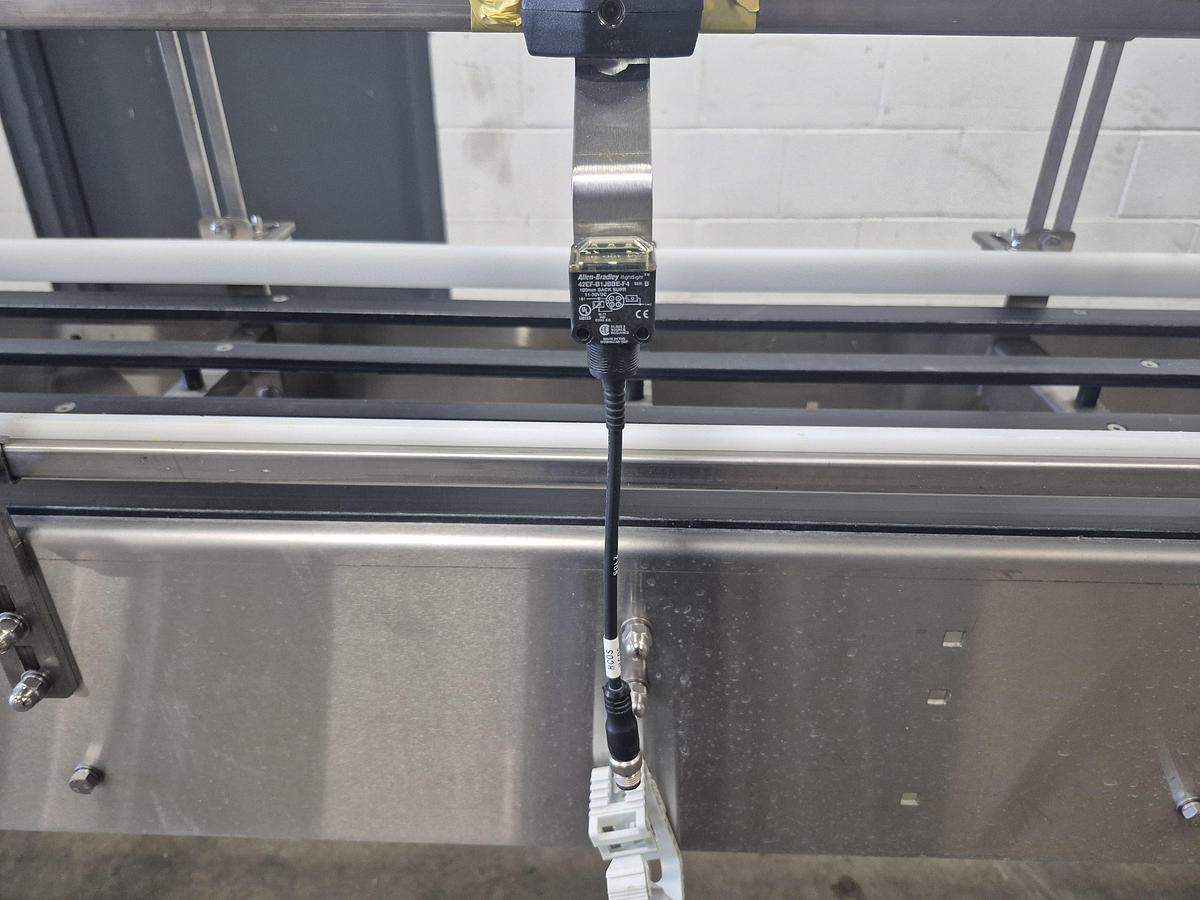

• Reduced Waste: Standard "No Container, No Fill" technology prevents product loss by only activating valves when a container is detected

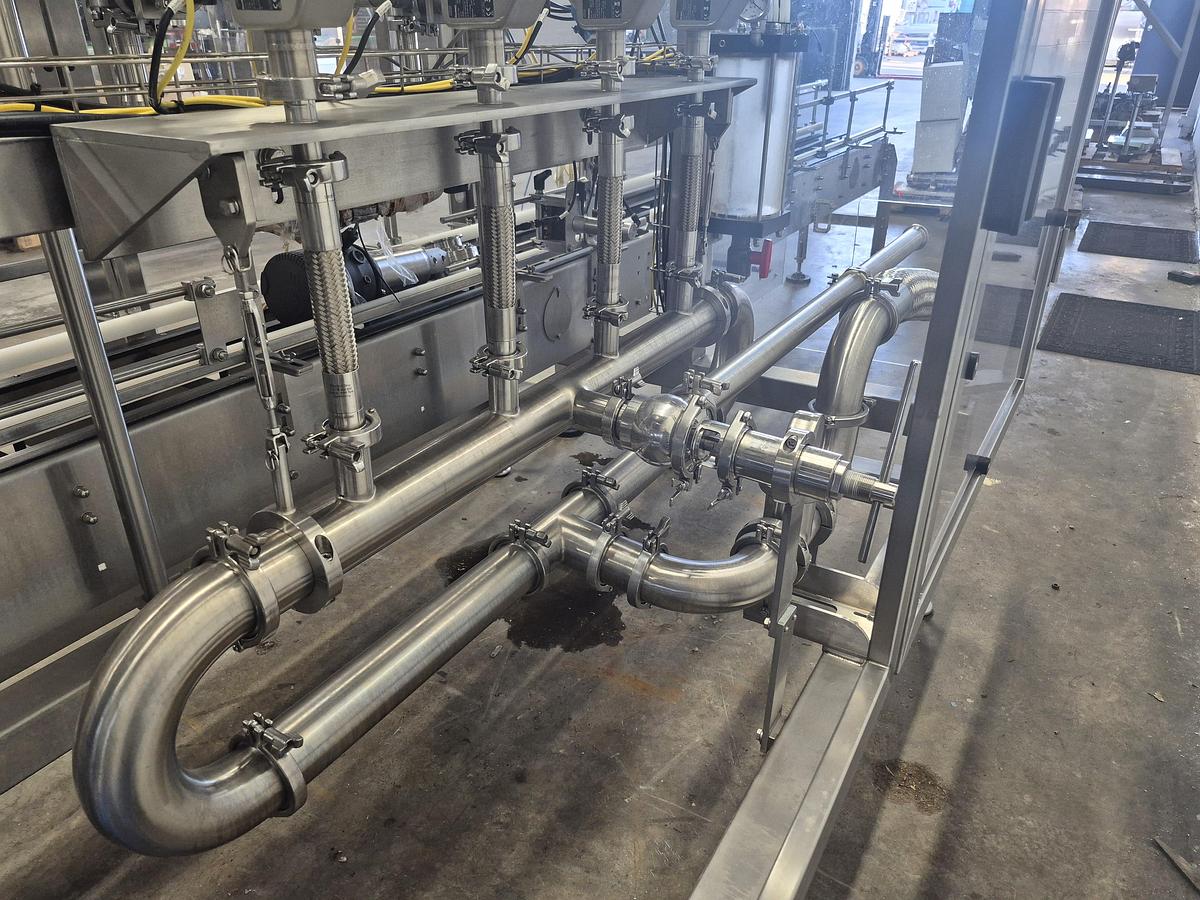

• Ease Of Maintenance: Includes Clean-in-Place (CIP) capability and a direct-to-manifold product supply, eliminating intermediate bowls and reducing clean-out time

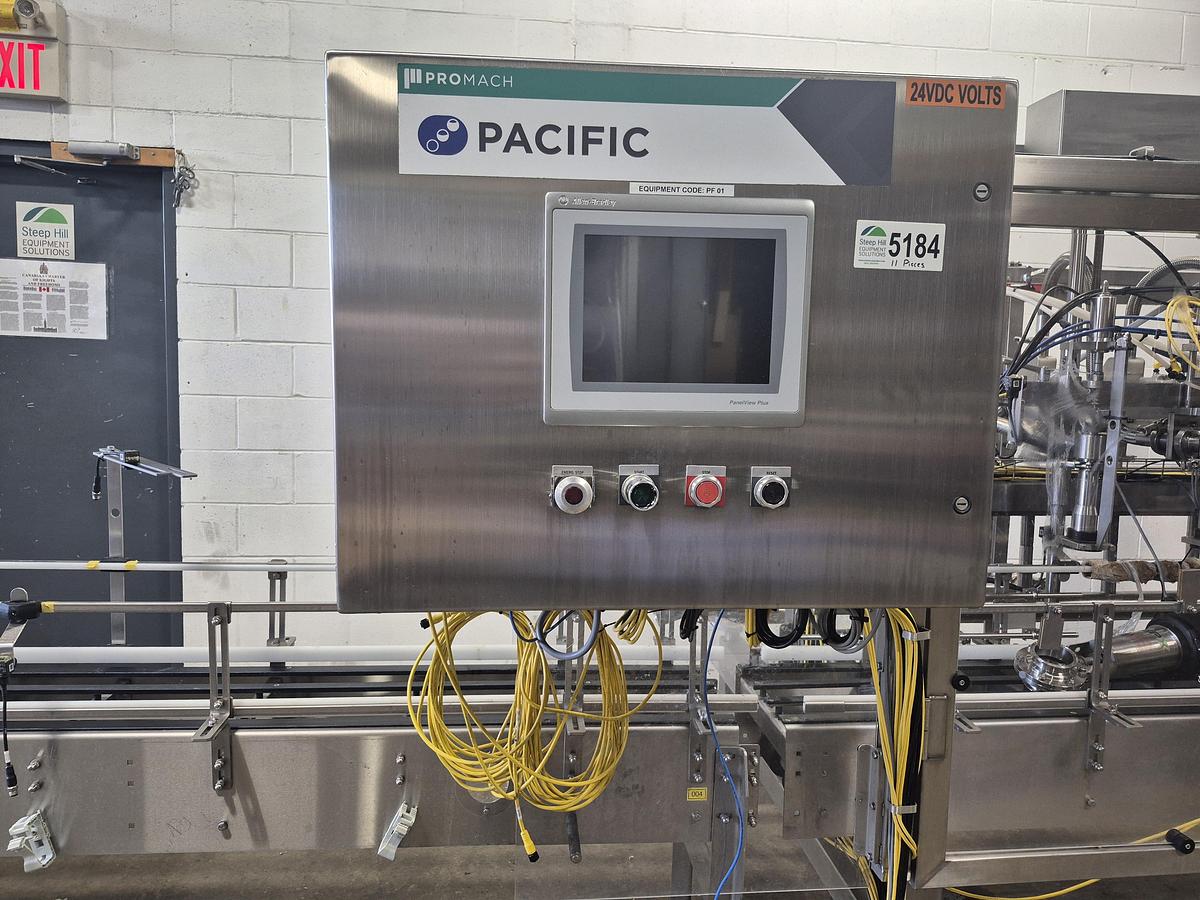

• Durability: Constructed with 316L stainless steel for all wetted parts and NEMA 4X electrical enclosures to withstand harsh wash-down environments

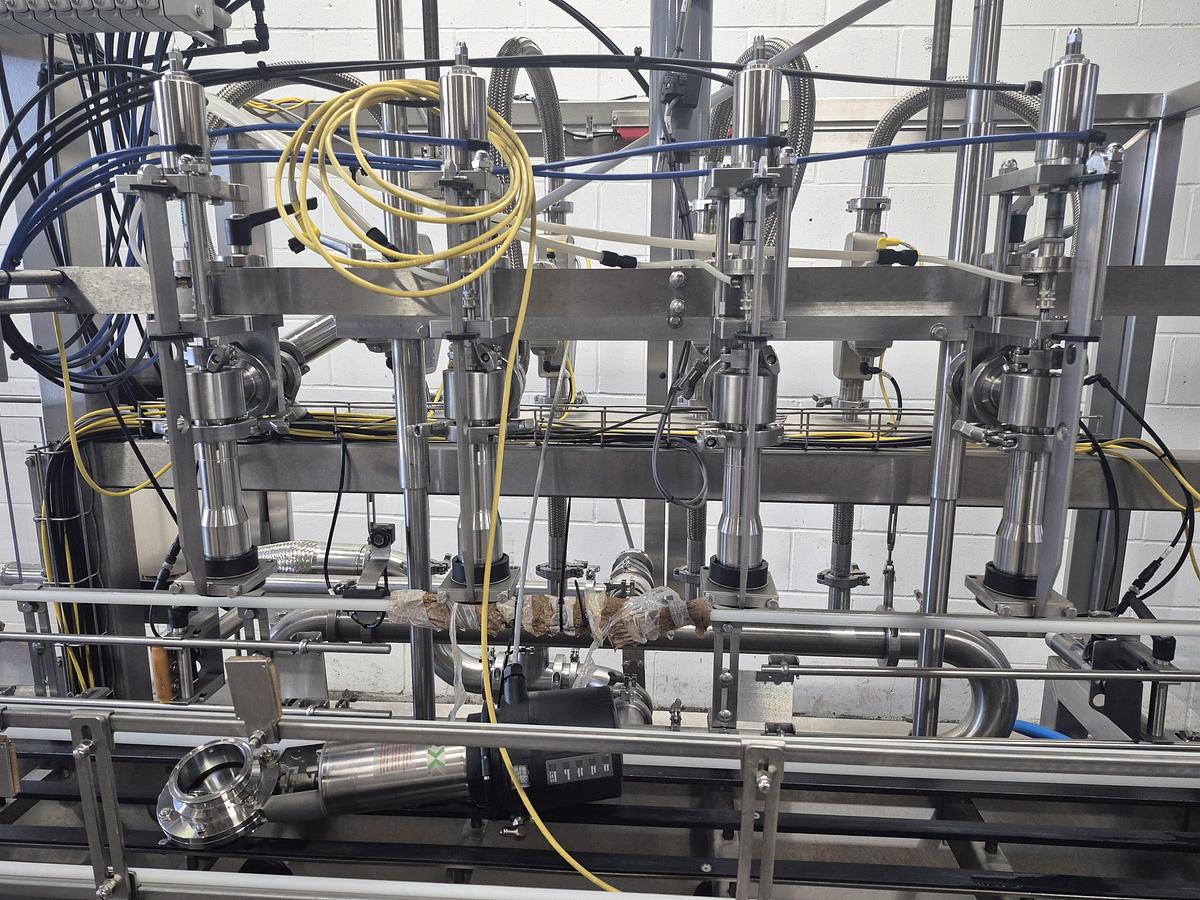

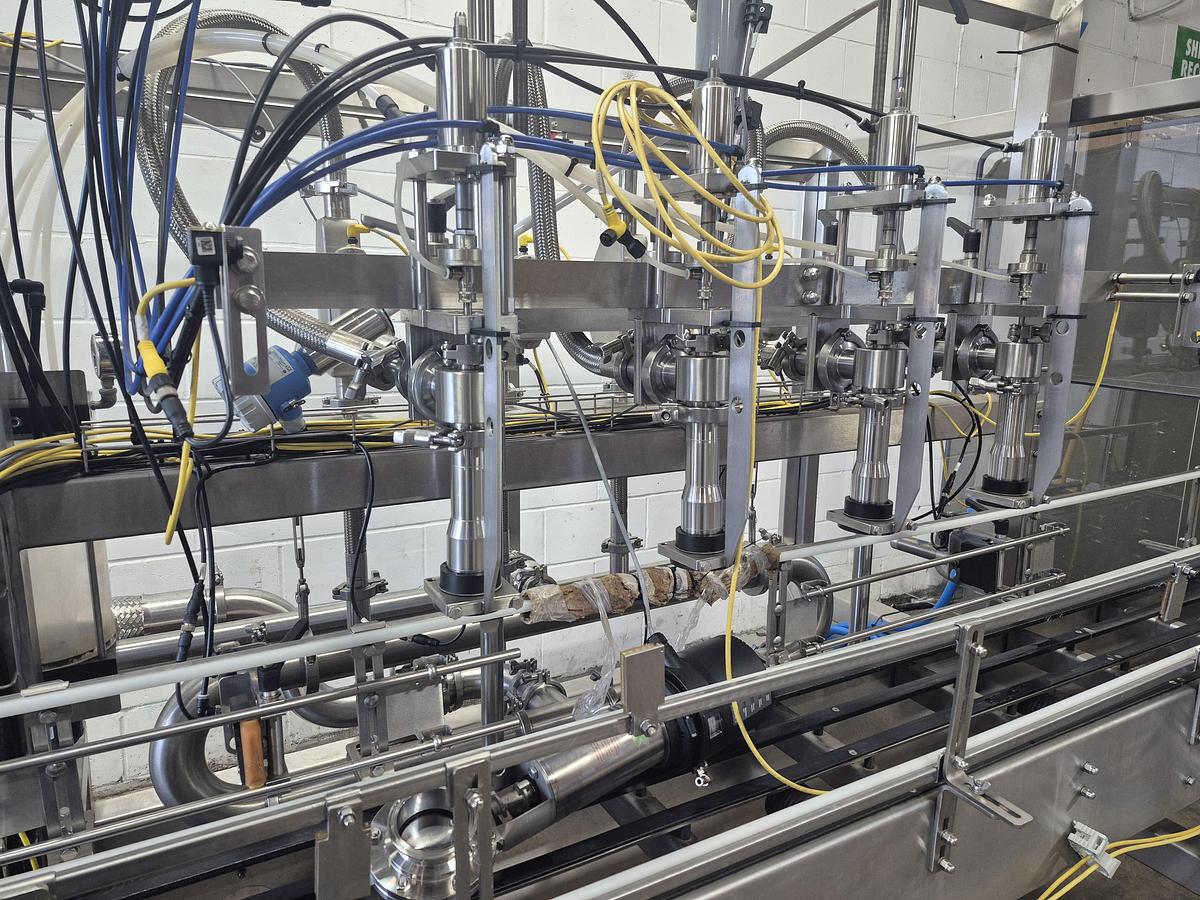

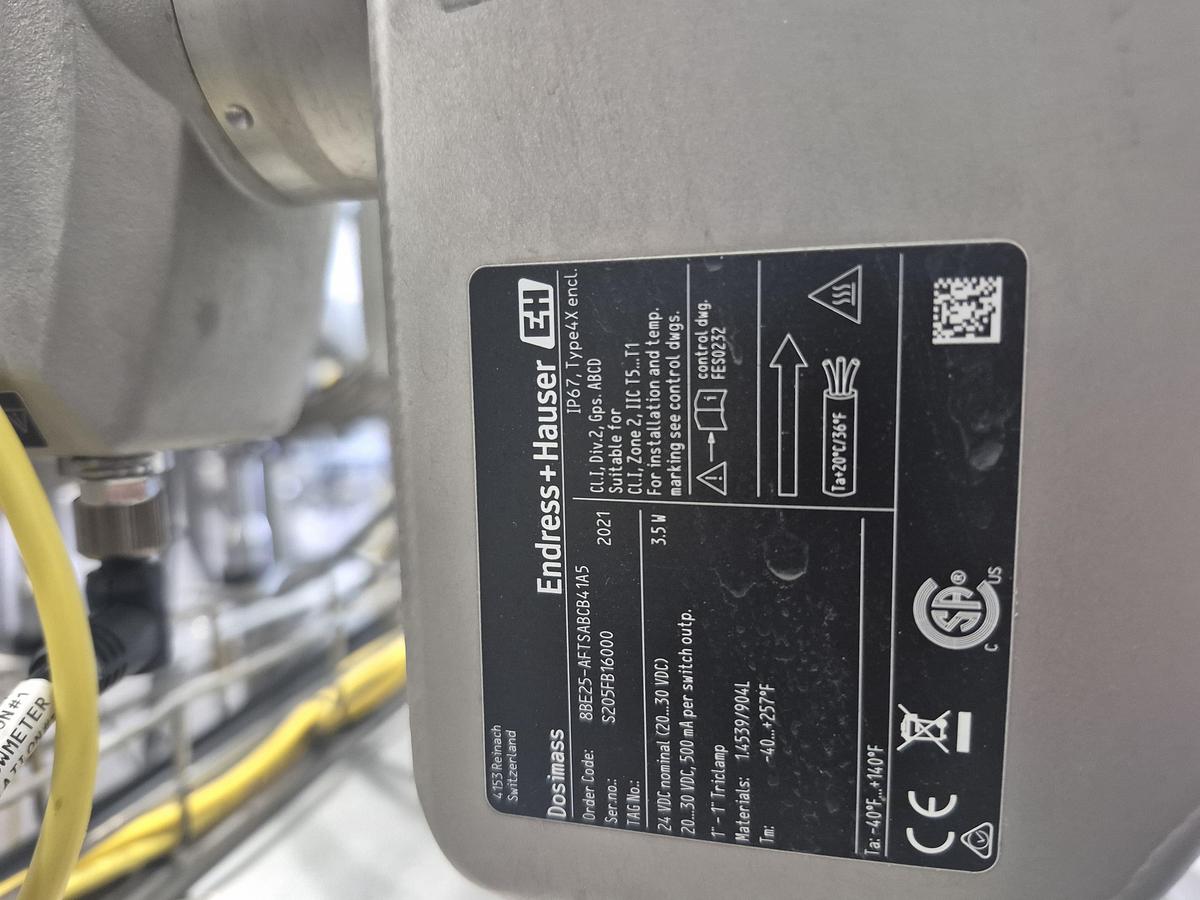

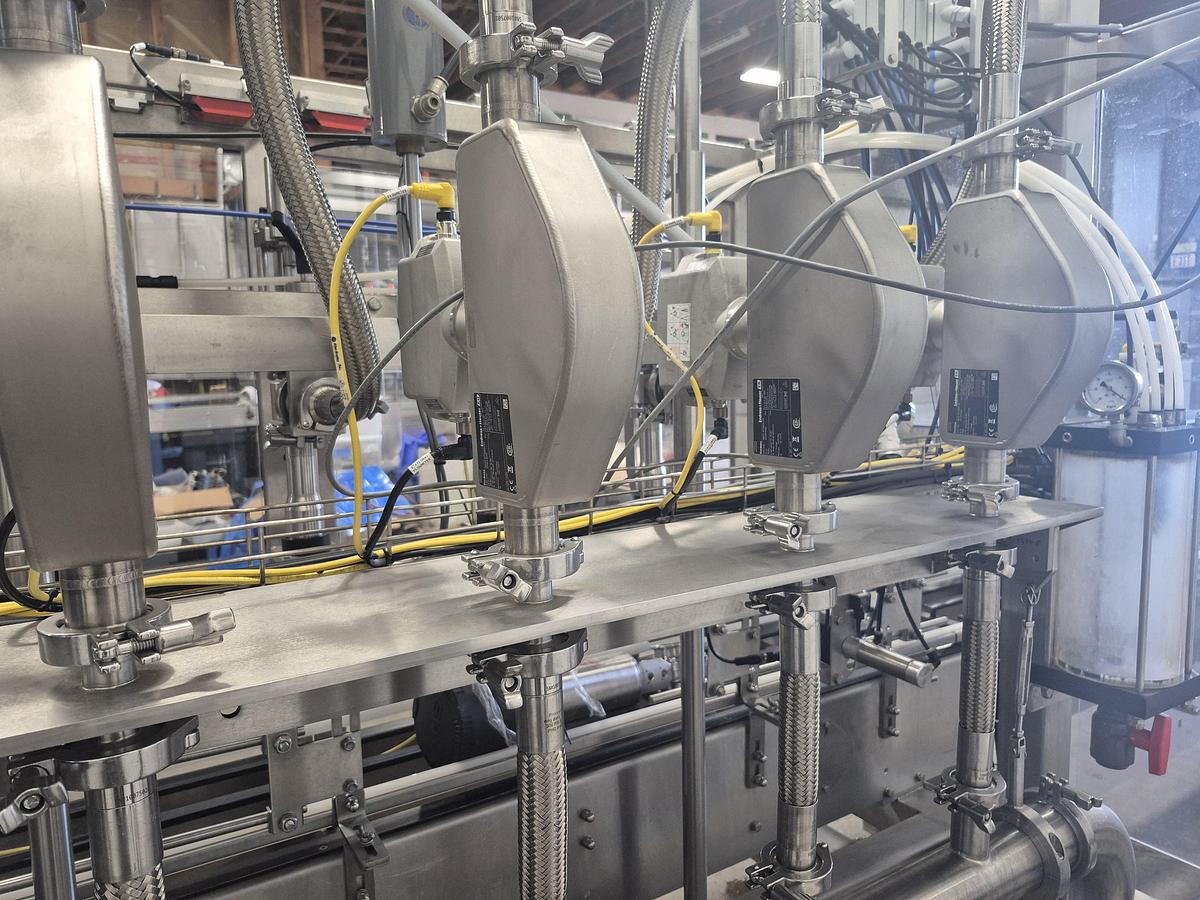

Has 4 Endress+Hauser Dosimass Coriolis Flowmeter

Specifically designed for high-precision filling and bottling applications

• Model: Dosimass (Proline 8BE)
• Measuring Principal: Coriolis mass flow, which allows for simultaneous measurement of mass flow, density, temperature, and volume flow
• Wetted Materials: The measuring tube is made of 1.4539 (904L stainless steel), and the process connection is a 1" Tri-clamp (standard for hygienic applications)
• Accuracy: Typically ±0.15% for liquid mass flow with high repeatability even in very short filling cycles
• Power Supply: 24 VDC nominal (acceptable range: 20...30 VDC)

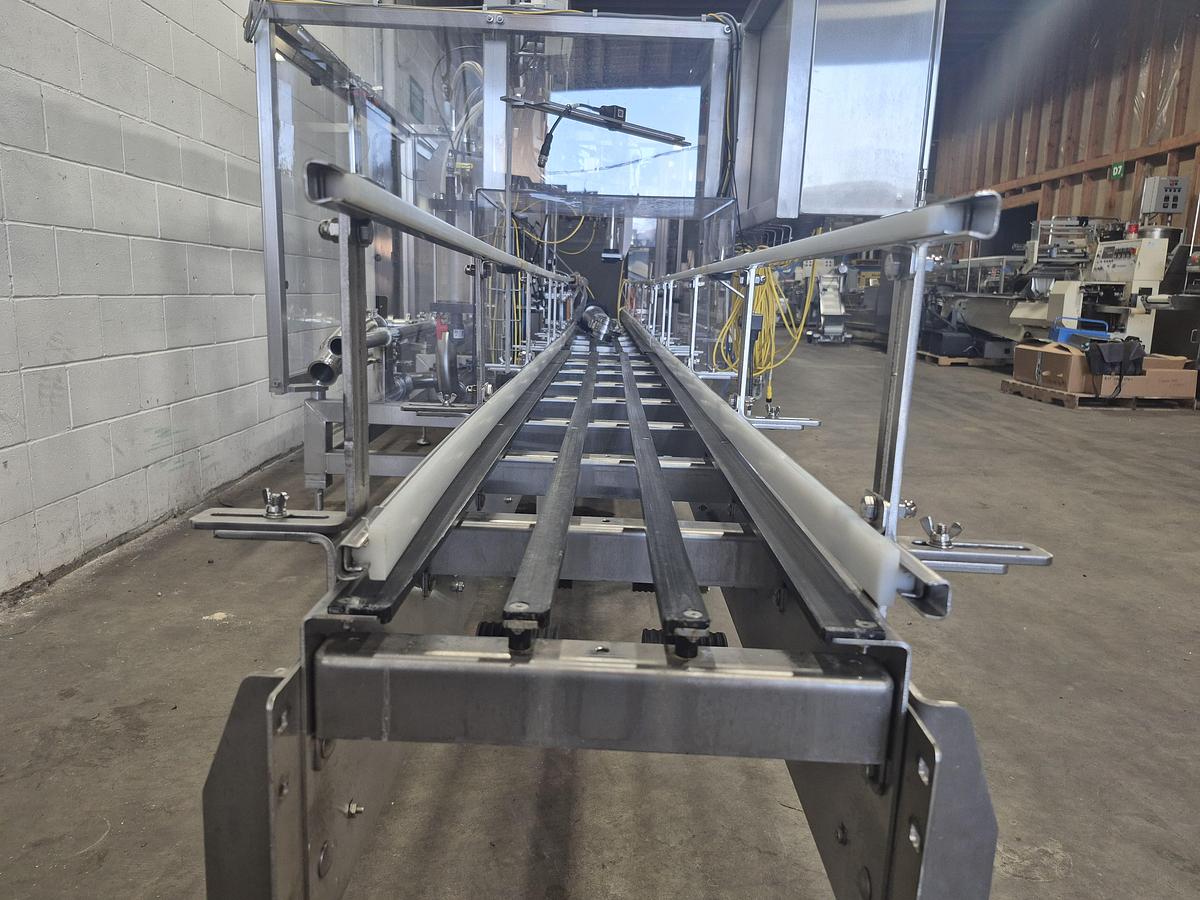

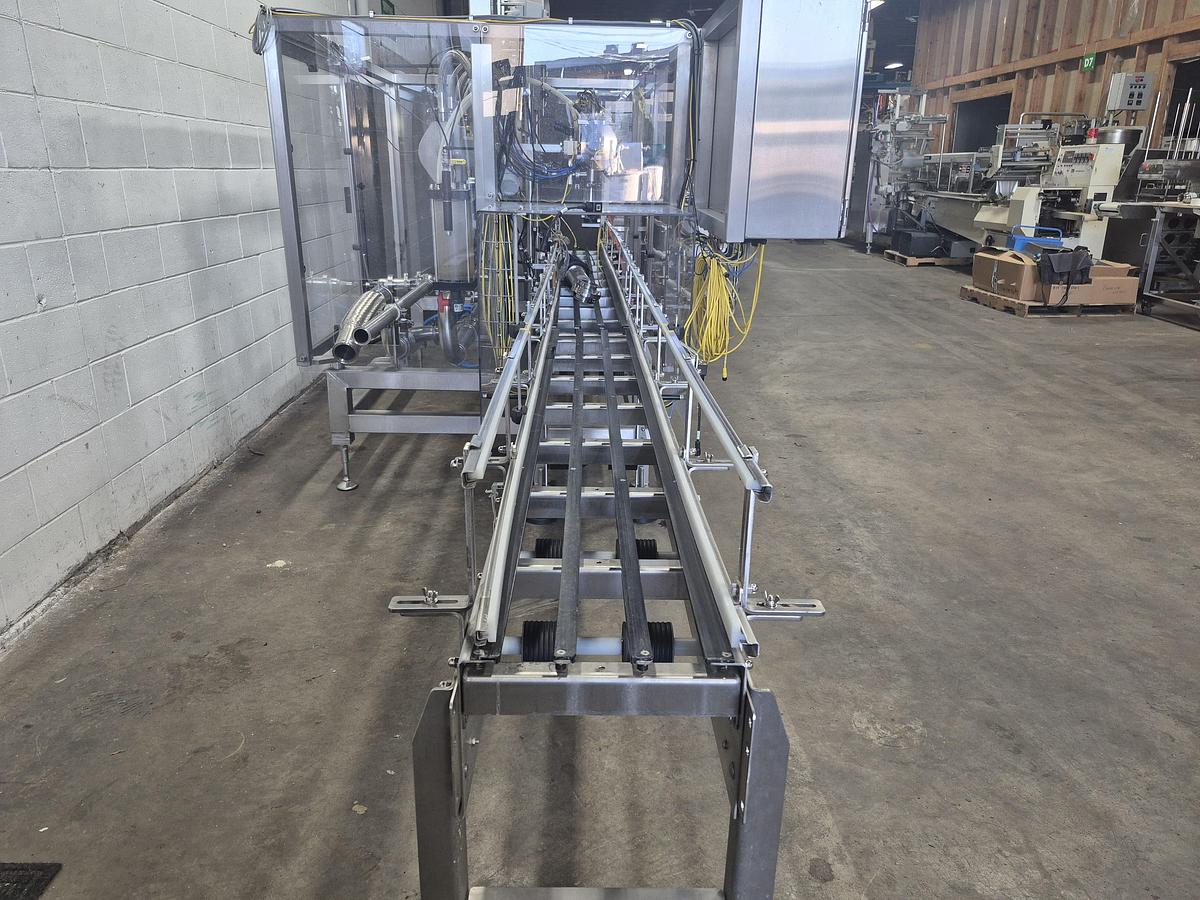

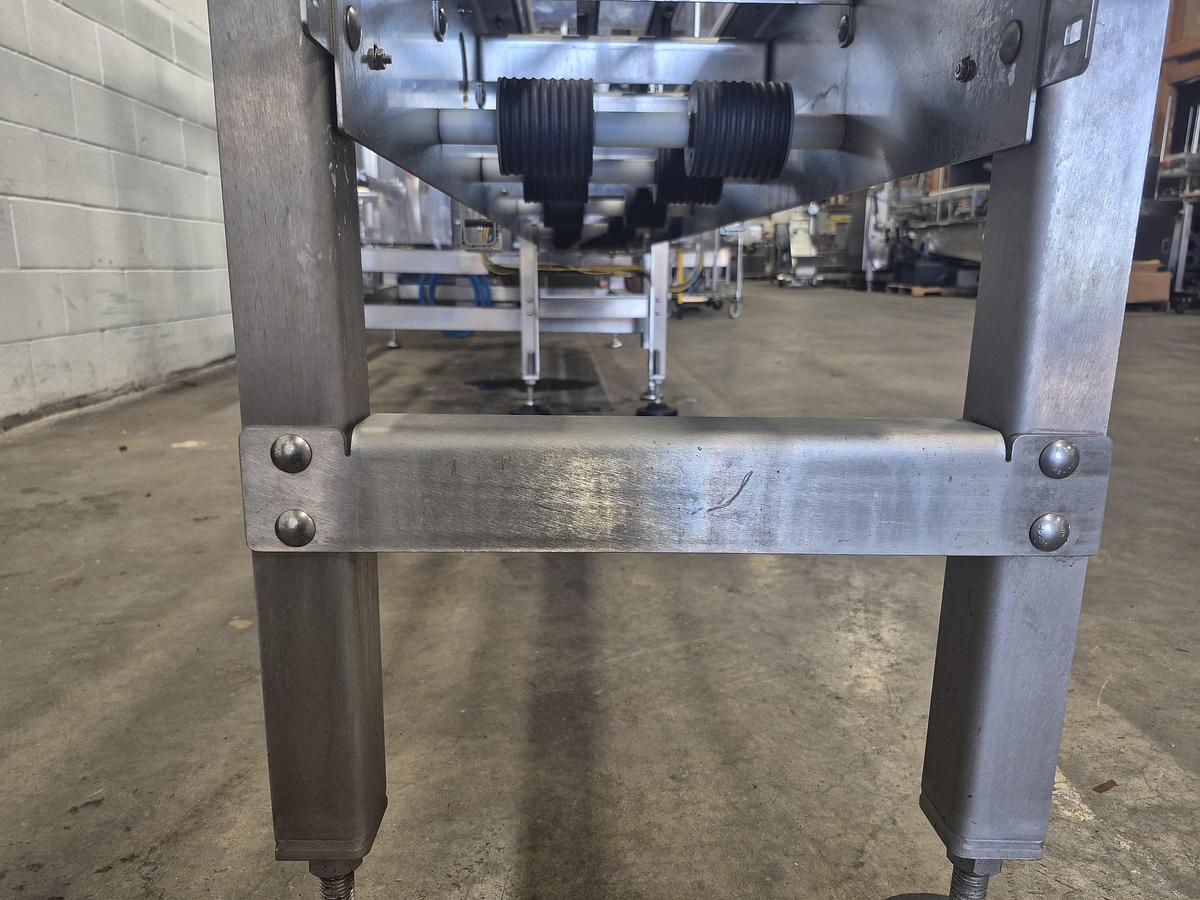

Conveyor at the end has a dimension:

• 83.5" L
• 12" W
• 30" Discharge Height

Comes from a Aesus 6-Head Filling Line

https://www.steephillequipment.com/listings/8425749-used-aesus-6-head-filling-line-with-descrambler-labeler-filler-capper-induction-sealer-accumulation-table
