Complete Bottle Filling Line

This complete bottling line includes 4 pieces of equipment to fit your bottle filling and labelling needs. Equipment:

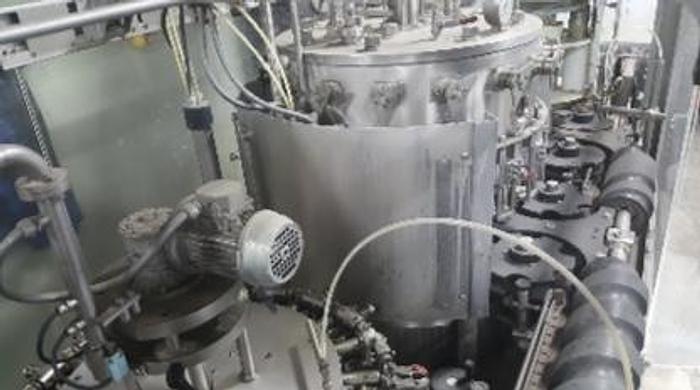

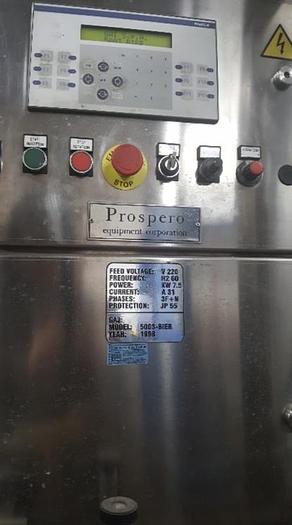

Prospero Bottle Filler Model 5003-BIER 1998

• The 5003 Bier monobloc is an automatic machine for in-line rinsing, de-aerating, filling, and capping of bottles of different sizes. It is formed by a rinsing station with 20 clamps, an isoberic filling station fitted with 16 taps, and a capping station comprising 3 crown capping heads. Comes with all additional parts purchased over the years to fit various bottle sizes. It has filled 330mL, 355mL, 650mL, and 750mL bottles on this line.
• Production: 1900 Lt/H
• Speed: 1000-5000 btl/H
• Power: 7.5kW | 220V | 3PH | 60Hz

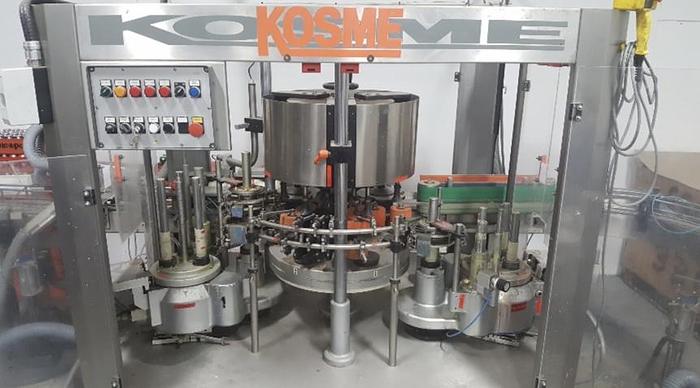

KOSME Bottle Labeler Machine EXTRA FIX 6T S2 E3

• Label machine has ability to apply neck, back, and front labels to bottles. Has been used to apply labels to multiple size bottles from 330mL to 355mL to 650mL bottles.
• Production: 4500 per hour
• Power: 2.5kW | 220V | 60 Hz

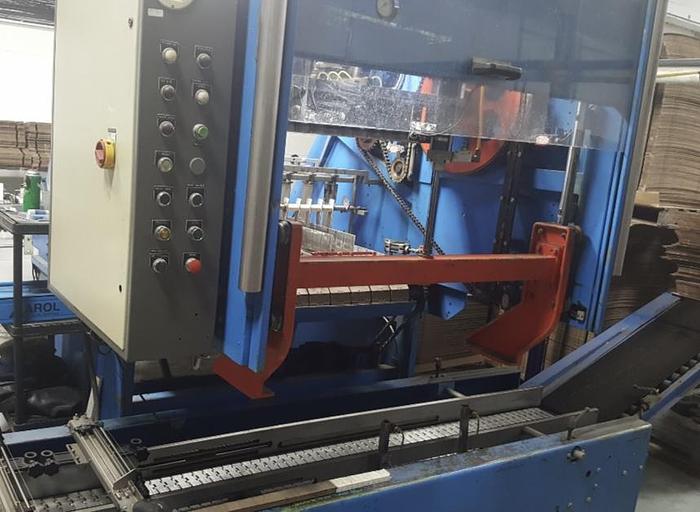

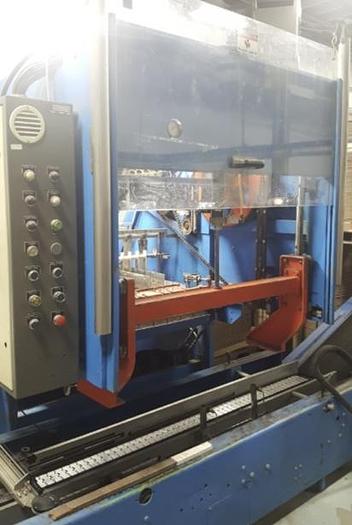

Bottle Packing Machine

• Bottle Packing Machine that is fully-automatic and pack up to 48 bottles at a time. Fully adjustable to fit bottle height.

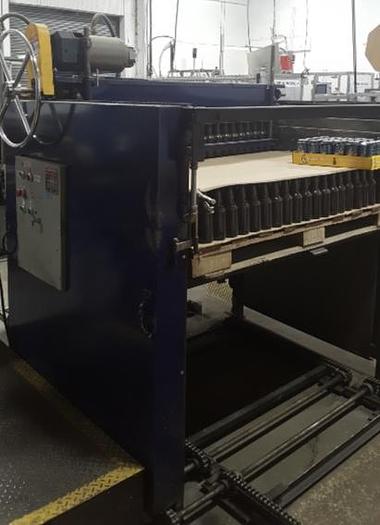

Bottle Depalletizer

• Custom built, semi-automatic depalletizer intended to work with the bottle filler.
