Keeprite Condensing Unit and Unit Cooler
Keeprite Condensing Unit and Unit Cooler
Description
Outdoor Air Cooled Semi-Hermetic Condensing Unit

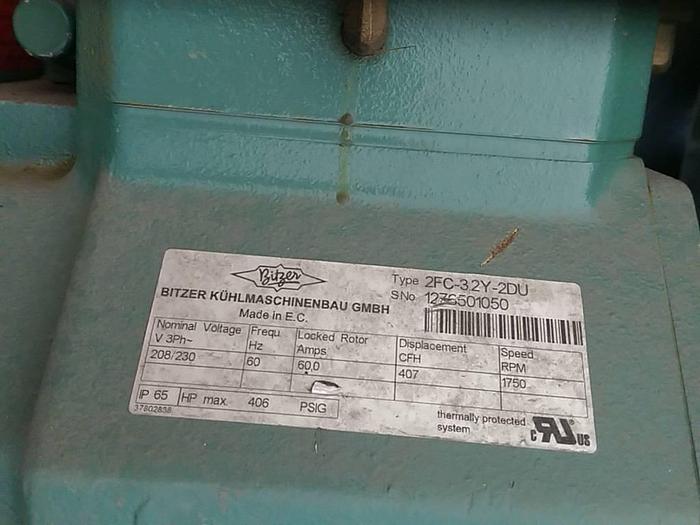

Manufacturer: Bitzer
2.9HP
Medium temperature
Refrigerant: R404A, R507
Outdoor enclosure
Compatible with Low GWP Refrigerants
• Weatherproof electrical control box with
compressor contactor and fused control circuit
• Spring mounted accessible semi-hermetic
compressor with suction and discharge vibration
eliminator

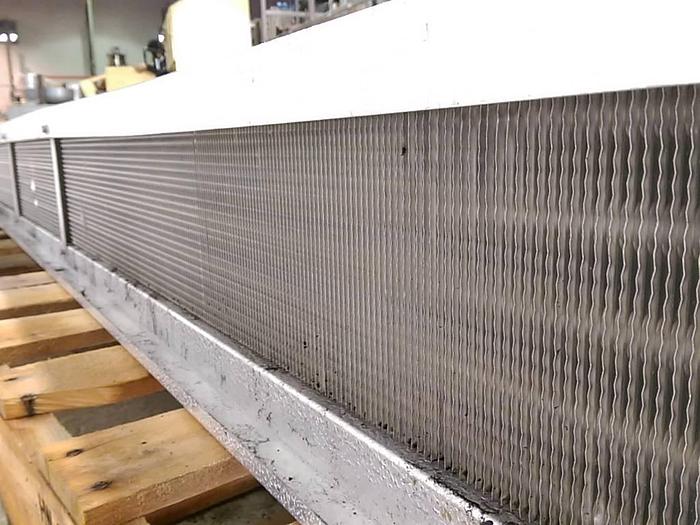

• High efficiency enhanced tube and fin condenser
design
• Energy efficient PSC condenser fan motor
• Receiver with fusible plug and liquid shut off valve
• Fixed high pressure switch and adjustable low
pressure control
• Receiver inlet and outlet shutoff valve (8HP and
above)
• Suction service valve
• Pre-formed copper tubing
• Unit leak tested and shipped with Helium holding
charge
• Electronic liquid injection on L8 units
• Galvanized cabinet
Outdoor Unit: All Standard Features of
Indoor Unit, Plus:
• Outdoor weather-resistant housing with
removable hood
• Flooded head pressure control (nonadjustable)
• Adjustable head pressure control on large 2 fan
models
• Crankcase heater
• Fan cycling control (all 2 fan models)
1188 AA7-2K & DD1
Specifications
Manufacturer | Keep-Rite |
Model | KESB029H6-HT3B-10286 |
Condition | Used |
Serial Number | 092303243 |
Stock Number | 1188 |
Dimensions (l x w x h) | 140" x 32" x 39" |
Weight | 30kg |
Power | 208-230, 3PH, 60HZ |
Location code | AA7-2K, BB4 |
Weight (kg) | 30 |
Length (in) | 140 |
Width (in) | 32 |
Height (in) | 39 |
